Description

Description

Product Description

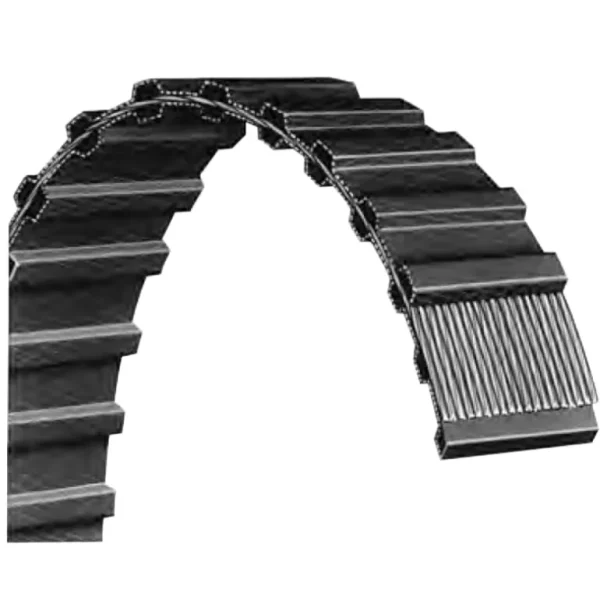

Bando – 200-DS8M-3200 Synchro-Link^® Double Sided Timing Belts provide smooth, precise performance under exacting drive conditions in serpentine drives common in printing, textile and packaging machinery. precision molding process assures “mirror-image” symmetry, so both sides of the belt mesh with the pulley properly and provide maximum belt life.

¢ Flexible neoprene body resists oil, heat, ozone, grease, and moisture for maximum belt life.

¢ Strong, helically-wound fiberglass cords won’t stretch or fatigue under high horsepower loads.

¢ Durable precision formed teeth engage pulley grooves exactly for accurate synchronization from both sides of the belt.

¢ Tough nylon fabric on both sides of the belt protects teeth against wear and abrasion. Low coefficient of friction provides smooth running characteristics.

Additional Information

Price Class535

Weight (lbs)0.832

Number of Teeth400

Tooth Pitch (In)0.315

Tooth Pitch (mm)8

Tooth ProfileDS8M

Multiplier0.6782

Belt Width (In)0.787

Belt Width (mm)20

ColorBlack

Ribs/Teeth/Angle400

CordFiberglass

Height (In)0.2874

Height (mm)7.3

MaterialNeoprene

Nominal Outside Length (In)125.9843

Nominal Outside Length (mm)3200
