Product Description

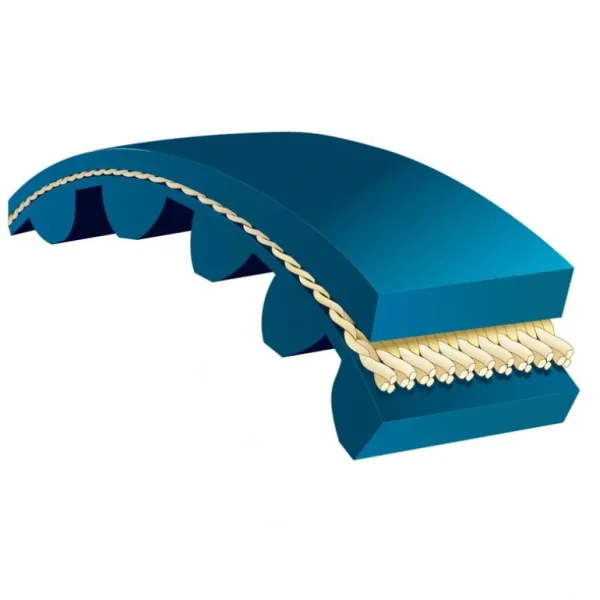

Bando – 250-KPS8M-1792 Utilizing high modulus aramid cords and the unique blue polyurethane body, the KPS II is the belt of choice for the applications requiring exceptional power transmission capabilities, particularly on lower speed-high torque drives.

• The KPS II belt transmits up to 5 times more power thana standard STS belt. This allows the same power transmission capacity to be achieved using narrower or smaller diameter pulleys, saving space and money.
• Wear-resistant polyurethane construction reduces rubber dust.
• Available in 8mm and 14 mm pitch.
• Utilize standard STS pulleys for a wide range of speed ratios.

Additional Information

Price Class551

Weight (lbs)0.3808

Number of Teeth224

Tooth Pitch (In)0.315

Tooth Pitch (mm)8

Tooth ProfileKPS8M

Multiplier0.4844

Belt Width (In)0.984

Belt Width (mm)25

ColorBlue

Ribs/Teeth/Angle224

CordAramid

Height (In)0.189

Height (mm)4.8

MaterialPolyurethane

Nominal Outside Length (In)70.5512

Nominal Outside Length (mm)1792
