Bando 800-KPS14M-1400 Timing Belt – One-stop shop for professional tools and equipment.^ Power Tools

Description

Description

Product Description

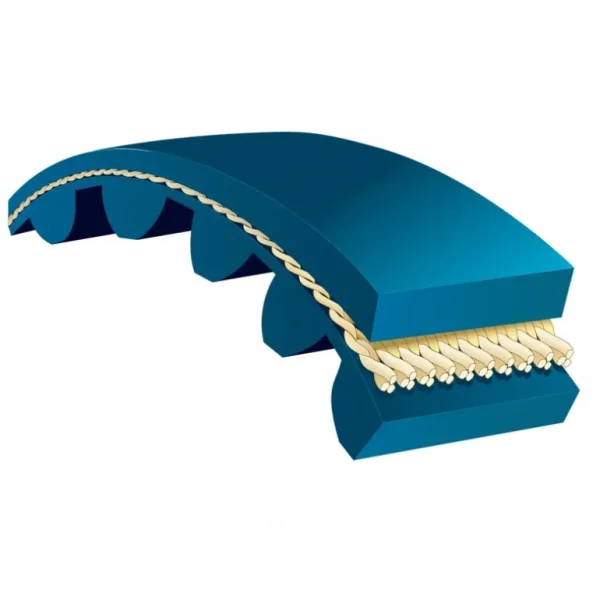

Bando – 800-KPS14M-1400 Utilizing high modulus aramid cords and the unique blue polyurethane body, the KPS II is the belt of choice for the applications requiring exceptional power transmission capabilities, particularly on lower speed-high torque drives.

• The KPS II belt transmits up to 5 times more power thana standard STS belt. This allows the same power transmission capacity to be achieved using narrower or smaller diameter pulleys, saving space and money.
• Wear-resistant polyurethane construction reduces rubber dust.
• Available in 8mm and 14 mm pitch.
• Utilize standard STS pulleys for a wide range of speed ratios.

Additional Information

Price Class551

Weight (lbs)1.624

Number of Teeth100

Tooth Pitch (In)0.5512

Tooth Pitch (mm)14

Tooth ProfileKPS14M

Multiplier0.4844

Belt Width (In)3.15

Belt Width (mm)80

ColorBlue

Ribs/Teeth/Angle100

CordAramid

Height (In)0.3346

Height (mm)8.5

MaterialPolyurethane

Nominal Outside Length (In)55.1181

Nominal Outside Length (mm)1400
