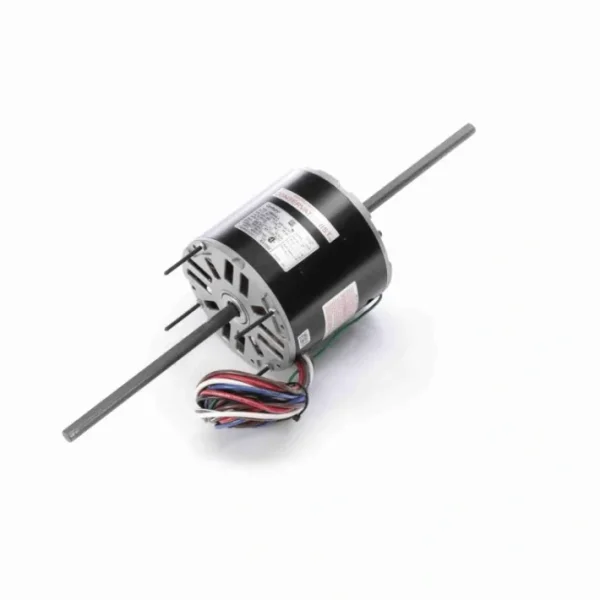

Best Sale Century Fan Coil & Air Conditioner Motor, 1/2 HP, 1 Ph, 60 Hz, 208-230 V, 1625 RPM, 3 Speed, 48 Frame, SEMI ENCLOSED – RA1054 – One-stop shop for professional tools and equipment. Accessories

Description

Description

Product Description

Century – RA1054

• Fan Coil – Room Air Conditioner – Blower Motor
• 5.6″ Diameter – 48 Frame
• Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
• Thermally Protected
• Open Lead End and Opposite Lead End End-Frame, Semi-Enclosed, Air Over
• Class A Insulation, 40°C Ambient
• Design Upgrade, Converting From Sleeve Bearing to Ball Bearing
• 1/2″ Diameter Double Shaft with Flat
• 35″ Leads
• Extended Studs Lead End, Resilient Ring Opposite Lead End, Resilient Mounting Accessories Supplied with Motor

Additional Information

Thermal ProtectionAutomatic

Speed1625 rpm

Current3.2 A

Number of Speeds3

Ambient Temperature40 °C

ULRecognized

Insulation ClassA

CSAY

Weight17.00 LB

Country Of originMexico

Output HP1/2 Hp

Output KW0.37 kW

Service Factor1

Frame48Y

EnclosureSemi Enclosed

DutyAir Over

Electrical TypePermanent Split Capacitor

Poles4

RotationCounterclockwise Lead End

MountingResilient Ring/Extended Studs

Motor OrientationHorizontal

Drive End BearingSleeve

Opp Drive End BearingSleeve

Frame MaterialRolled Steel

Shaft TypeFlat

Frame Length4.50 in

Shaft Diameter0.500 in

Shaft Extension7.6X.5X7.3 in

HTC8501.40.4040

CEN

Starting MethodAcross The Line
