Product Description

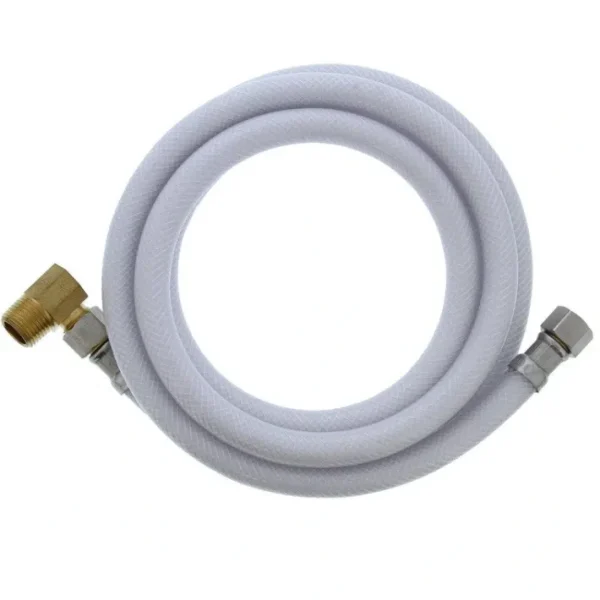

Jones Stephens – S04430 Connect your dishwasher to its water supply with confidence with Jones Stephens’ 3/8″ Compression x 3/8″ Compression x 72” Braided Vinyl Dishwasher Connector with 3/8” MIP 90° Elbow. This connector features a high-quality outer construction of vinyl for maximum performance and resistance to kinking and creasing. Installation is quick and easy with no special tools or pipe bending necessary. Its inner core of PVC withstands temperatures of 68°F-158°F – providing reliable, trouble-free service.

• Used to connect dishwasher to water supply
• Inner core of PVC withstands temperatures of 68°F-158°F
• Working pressure: 124 PSI
• Brass end connections
• No special tools needed
• Nickel plated nut
• Flexible vinyl connector resists kinking and creasing
• UPC listed
• Meets NSF/ANSI/CAN 372, NSF/ANSI/CAN 61: Q =0.5, and NSF/ANSI 14 standards
• ASME A112.18.6/CSA B125.6
• Lead free

Additional Information

Country of Origin:China

MaterialPVC outer layer w/Polyester Braided Jacket,Reinforced PVC Body

Size:3/8″ x 3/8″

Prop65 Warning:Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Max Temperature:158°F

Max Pressure:450 psi

Temperature Range:68°F – 158°F

Working Pressure:124 psi

Working Temperature:158°F

Approved Applications:Dishwasher

Color:White

Gasket Material:Gasket Material:

SantopreneSilicone

Length:72″

End Connection Material:Brass

Warranty:1 Year

AB100 Certified:N/A

CEC Listed:No

cUPC Listed:Yes

UPC Listed:Yes

End Connections:End Connections:

CompressionMIP

ANSI Standard:ANSI Standard:

ANSI Standard:ANSI 372-2022

ANSI 61-2021: Q 0.5

ASME Standard:ASME A112.18.6-2017

CEC Compliant:No

CSA Listed:No

IAPMO Listed:Yes

Lead Law Compliant:Yes

MASS Approved:No

NSF Certified:No

NSF Standard:NSF Standard:

NSF Standard:NSF 372-2022

NSF 61-2021: Q 0.5

SDWA Compliant:Yes

CAN Standard:CAN Standard:

CAN 372-2022CAN 61-2021: Q
