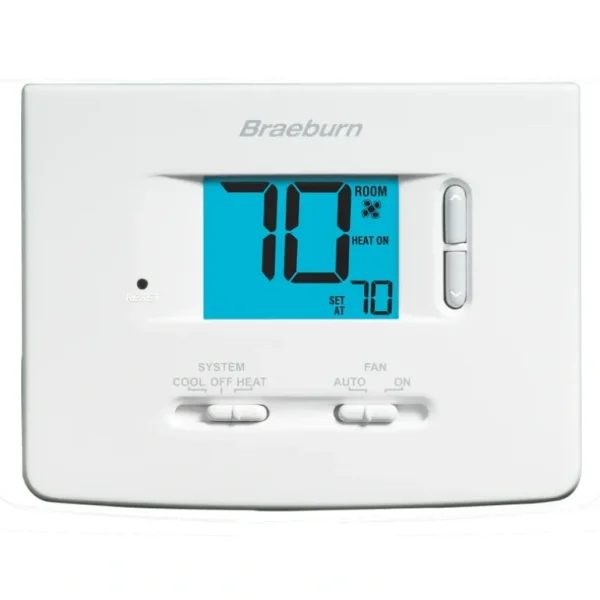

Braeburn – 1020NC Builder Non-Programmable Thermostat 1H / 1C

Features

• Large 2 Sq. In. Display with Bright Blue Backlight
• Adjustable Temperature Limits
• Hardwire or Battery Powered
• Permanent Memory Retains Settings
• Compressor Short Cycle Protection
• Separate O B Terminals
• Low Battery Indication
• ESD Guard Electronic Circuitry
• Front Access Reset Button
• F˚ / C˚ Switch
• Gas / Electric Fan Switch
• Trilingual Packaging and Instruction Card with FREE Contractor Branding

Additional Information

Dimensions 3.62” x 4.72” x 1.38”

Electric Rating 24 Volt AC (18-30 Volt AC), 1 amp maximum load per terminal, 3 amp total maximum load (all terminals)

AC Power 18-30 Volt AC

DC Power 3.0 Volts DC (2 “AA” Alkaline batteries included)a

Compatibility Single stage gas, oil or electric systems, Single stage heat pump systems, 250mv – 750mv millivolt heating systems

Control Range 45° to 90° F (7° to 32° C)

Display Range 40° to 99° F (5° to 37° C)

Accuracy +/- 1° F (+/- .5° C)

Temperature Differential .5°, 1°, or 2° F (0.2°, 0.5°, or 1° C)

Storage Temperature 14° to 140° F (-10° to 60° C)

Operating Humidity 5% to 95% Relative Humidity

Terminations Rc, Rh, B, O, Y1, W1, G, C
