Product Description

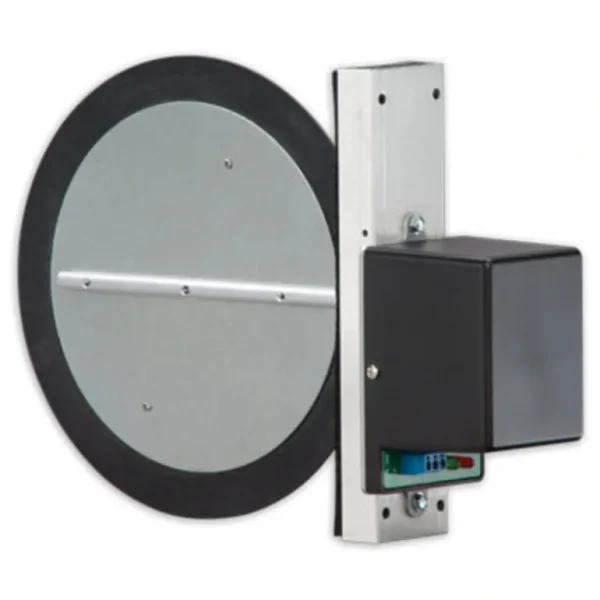

Braeburn – 128007 Braeburn PO/PC Round Zone Dampers are used
to control the volume of air that will be distributed to
a zoned area. With three wire installation and a high
torque motor, Braeburn zone dampers provide the
quality and durability you have come to expect from
the value leader in indoor controls.

Quick and Easy Installation
Simply cut a one inch slot along the length of the
duct. Slide the damper in and secure with screws.
Resiliant gasket helps provide a positive seal

Features

• Power Open, Power Close Operation
• Heavy Duty Galvanized Construction
• Dual LEDs for Positive Indication of Open to Close
• Slip-In Design for Quick Installation
• Minimum/Maximum position setting
• Can be used in Modulating Applications
• Excellent for use as a Bypass Damper with a Static Pressure Controller (Braeburn 149020)

Additional Information

Power 24 VAC, 4 VA, 50/60 Hz, 6W, 100 mA

Actuator High torque (283 in/oz. (17.70 in/lbs.) 2Nm

Indicators Dual LEDs Indicate Open and Closed

Terminals Three Quick Connect Wiring Terminals

Timing Nominal 13.5 sec. Powered

Pressure Maximum 2.0” W.C.

Temp Rating 0˚F to 150˚F Operating, -20˚F to 175˚F Storage

Humidity 5% to 95% Non-Condensing

Function Use as a Zone Damper or Bypass Damper
