Product Description

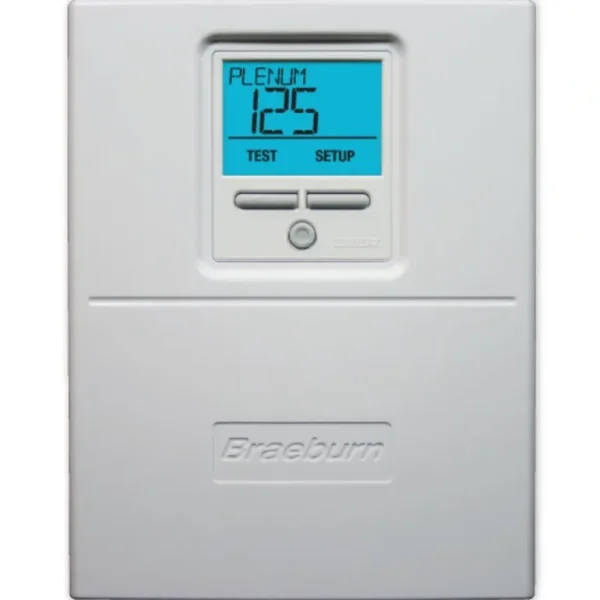

Braeburn – 140404 Expandable Zone Control Panels
Featuring a compact 8”W x 10”H housing and a large 5.5
sq. in. backlit display for set-up, checkout and operation.

Quick and Easy Installation
Push-in terminal blocks lock in wires without a screwdriver. LED’s indicate equipment and zone calls while the
display keeps you up to date with panel operation. Plus,
wire guides and a small footprint allow for a quick and
professional installation.

Features

• Controls up to 4 heating and 2 cooling stages
• Expandable up to 32 zones
• Compatible with electric, gas, oil and heat pump equipment–including dual fuel
• Can be used with virtually all low-voltage thermostats and dampers from other manufacturers
• Compatible with BlueLink Wireless Technology
• Large 5.5 sq. in. display shows system status
• Dual fuel operation with Braeburn outdoor sensor
• LED’s show all calls at a glance
• Push-in terminals for easy wiring– no screwdriver needed
• Flexible staging controlled by panel or thermostat
• Push button set-up without dip switches
• Plenum sensor included

Additional Information

Power 24 VAC

Sensor Plenum Sensor Included

Indicators LCD’s for all thermostats, equipment and dampers, LCD for configuration

Thermostat Conventional or Heat Pump Up to 4H / 2C

Construction PC Board in High Impact Housing

Mounting Wall or Return Air Plenum Mount

Environmental Storage -40˚ F to 167˚ F (-40˚ to 75˚ C), Operating -22˚ F to 167˚ F (-30˚ to 75˚ C)
