Sale!

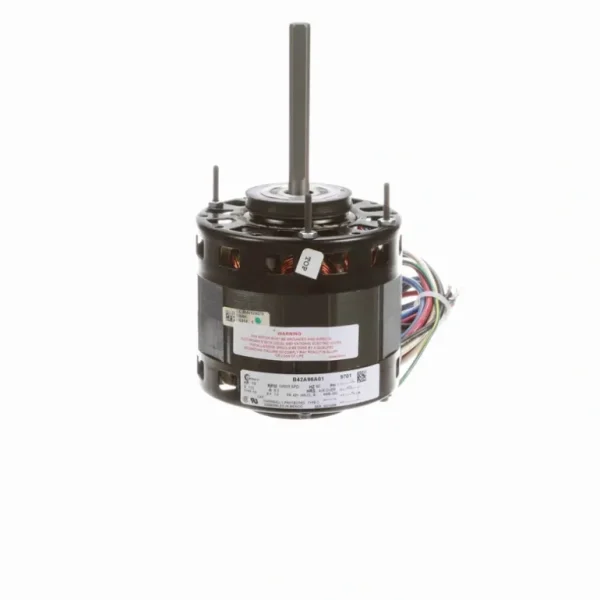

Century Fan and Blower Motor, 1/6 HP, 1 Ph, 60 Hz, 115 V, 1050 RPM, 3 Speed, 42 Frame, OPEN - 9701 - One-stop shop for professional tools and equipment.^ Hand

Century Fan and Blower Motor, 1/6 HP, 1 Ph, 60 Hz, 115 V, 1050 RPM, 3 Speed, 42 Frame, OPEN – 9701 – One-stop shop for professional tools and equipment.^ Hand

Original price was: $188.28.Current price is: $54.60.

DescriptionProduct DescriptionCentury – 9701Furnace Blower – Attic Ventilator – Air Handler – F…

Add to wishlist
Category:

Description

Description

Product Description

Century – 9701

  • Furnace Blower – Attic Ventilator – Air Handler – Fan Coil Motor
  • 5″ Diameter – 42 Frame
  • Shaded Pole
  • Thermally Protected
  • Open Air Over
  • Class B Insulation, 40°C Ambient
  • Sleeve Bearing
  • 1/2″ Diameter Shaft with Flat
  • 26″ Leads
  • Extended Studs Shaft End, Resilient Ring Mounting

Additional Information

Thermal ProtectionAutomatic

Speed1050 rpm

Current6.3 A

Number of Speeds3

Ambient Temperature40 °C

ULRecognized

Insulation ClassB

CSAY

Weight12.00 LB

Country Of originMexico

Output HP1/6 Hp

Output KW0.13 kW

Service Factor1

Frame42Y

EnclosureOpen Enclosed

DutyAir Over

Electrical TypeShaded Pole

Poles6

RotationCounterclockwise Lead End

MountingResilient Rings

Motor OrientationHorizontal

Drive End BearingSleeve

Opp Drive End BearingSleeve

Frame MaterialN/A

Shaft TypeFlat

Shaft Diameter0.500 in

Shaft Extension4.5 in

HTC8501.40.4040

CEN

Starting MethodAcross The Line
