Description

Description

Product Description

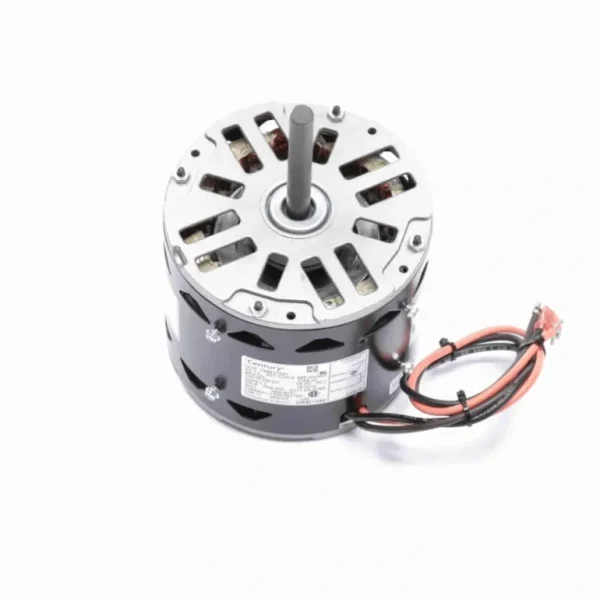

Century – ORM1076

• OEM Direct Replacement Motor
• 5.6″ Diameter – 48 Frame
• Permanent Split Capacitor (PSC); Capacitor Required: 15 Mfd-370 Volts (Not Supplied with Motor)
• Thermally Protected
• Open Air Over
• Class B Insulation, 40°C Ambient
• Ball Bearing
• 1/2″ Diameter Shaft with Flat
• 35″ Power Leads with Flag Terminals, 28″ Capacitor Leads with Flag Terminals
• Mounting Holes in Shell

Additional Information

Thermal ProtectionAutomatic

Speed1075 rpm

Current10.5 A

Number of Speeds4

Ambient Temperature40 °C

ULRecognized

Insulation ClassB

CSAY

Weight19.00 LB

Country Of originMexico

Output HP3/4 Hp

Output KW0.56 kW

Service Factor1

Frame48Y

EnclosureOpen Enclosed

DutyAir Over

Electrical TypePermanent Split Capacitor

Poles6

RotationReversible

MountingRound Belly Band

Motor OrientationHorizontal

Drive End BearingBall

Opp Drive End BearingBall

Frame MaterialRolled Steel

Shaft TypeFlat

Frame Length5.13 in

Shaft Diameter0.500 in

Shaft Extension5 in

HTC8501.40.4040

CEN

Starting MethodAcross The Line
