Cheap McDonnell 172806 Hi Pressure Level Control – One-stop shop for professional tools and equipment. Pressure

Description

Description

Product Description

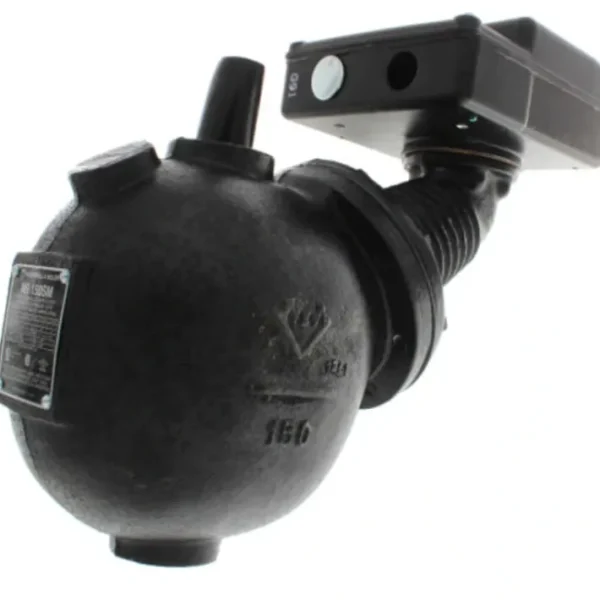

McDonnell & Miller – 172806 Features and Benefits

• For commercial and industrial low or high pressure boiler applications
• For boilers of any steaming capacity
• Monel bellows provides corrosion resistance
• Snap action switches for high temperature service
• 1 Single pole, single throw switch for pump control
• 1 Single pole, double throw switch for low water
• Cut-off and alarm actuation

Optional Features

• Manual reset
• 2 Single pole, single throw switches
• 2 Single pole, double throw switches
• Float block
• BSPT threads
• Maximum pressure 150 psi

Additional Information

ApplicationSteam Boilers

SwitchSPDTSPST

Max Pressure150 psi

TypeFloat-StyleCombo

FeaturesSnap Switch

Reset TypeManual

Depth (Inches)13-1/4″

Width (Inches)6″

Length12-7/16″

Electrical Ratings (ALR)44.4 A @ 120 VAC22.2 A @ 240 VAC

Electrical Ratings (AFL)7.4 A @ 120 VAC3.7 A @ 240 VAC

Pilot Duty Rating345 VA

Thread Size1″

Connection TypeThreaded
