Product Description

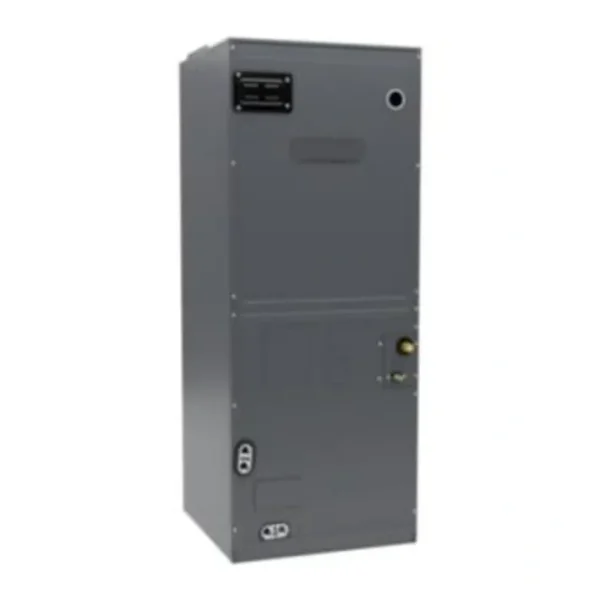

Goodman – AVPTC36C14 AVPTC Ducted Multi-position Air Handler, Variable Speed ECM Motor, 3 Ton, 21 in Cabinet with TXV Expansion, ComfortBridge Technology compatible

Specification :

• 1. Internal factory-installed thermal expansion valves for cooling and heat pump applications
• 2. Variable-speed ECM blower motor
• 3. Integrated communicating ComfortBridge Technology
• 4. Commissioning and diagnostics via on board Bluetooth with the CoolCloud phone and tablet application.
• 5. Auto configuration of the airflow and tonnage in communicating mode
• 6. Provides constant CFM over a wide range of static pressure conditions independent of duct system
• 7. CFM indicator
• 8. Fault recall of six most recent faults
• 9. Provides adjustable low CFM for efficient fan-only operation
• 10. Improved humidity and comfort control
• 11. Built-in compatibility with multi-stage heat pump and cooling applications

Cabinet Features :

• * 1. Rigid SmartFrame cabinet
• * 2. Cabinet air leakage less than 2.0% at 1.0 inch H¢ššO when tested in accordance with ASHRAE standard 193
• * 3. Cabinet air leakage less than 1.4% at 0.5 inch H¢ššO when tested in accordance with ASHRAE standard 193
• * 4. Horizontal or vertical configuration capabilities
• * 5. 21″ depth for easier attic access
• * 6. DecaBDE-free thermoplastic drain pan with secondary drain connections
• * 7. Screw-less sides and back helps to reduce condensation when installed in humid locations
• * 8. Foil-faced insulation covers the internal casing to reduce cabinet condensation
• * 9. Galvanized, leather grain-embossed finish
• * 10 .Glue-less cabinet insulation retention

Additional Information

Manufacturer Part NumberAVPTC36C14

Unit Depth21 in

Unit Height49 in

Unit Width21 in

Family DescriptionMulti-Position, Variable-Speed, ECM-Based Air Handler with Internal TXV ComfortBridge Compatible 1‚ ½ to 5 Tons

Max. Voltage253 V

Min. Circuit6.5/6.5 A

Min. Voltage197 V

Power Frequency60 Hz

Power Phase1 Ph

Power Voltage208/230 V

FamilyAVPTC

Prop65 Label RequiredTRUE

RefrigerantR-410A

Unit TypeIndoor

Indoor Blower FLA5.2 A

Motor Speed TypeVariable Speed ECM

Blower Motor RPM1250 r/min
