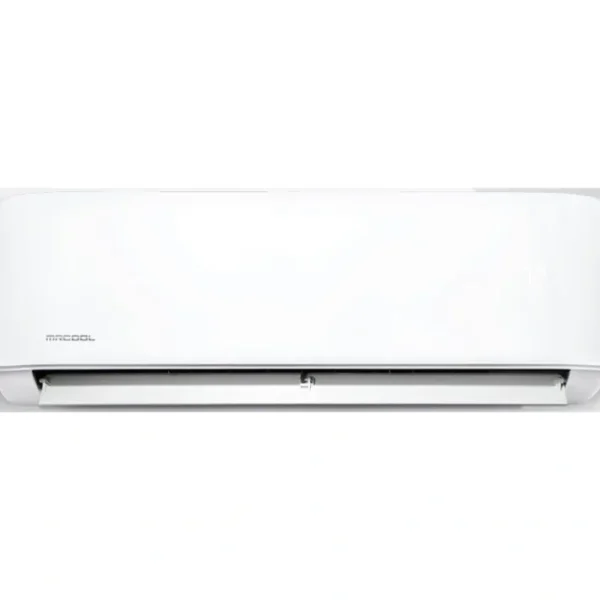

MRCOOL – DIY-18-HP-WMAH-230C25 MrCool E Star DIY 4th Gen 18k BTU Ductless Mini-Split Air Handler 208-230V/60Hz

The MrCool 4th Generation DIY 18K BTU Ductless Wall Mounted Air Handler is one of the most capable on the market. When part of a MrCool DIY system, it can reach an effective 22 SEER efficiency rating and deliver that performance to an area up to 750 sq. ft. This air handler is also very versatile because of its many different operating modes, these include, COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP. It also has the ability to be controlled from anywhere using an Apple or Android smartphone with our convenient Smart HVAC app. This air handler is very compact and relatively light, so it can easily be mounted to most interior walls using the included mounting plate. The ease of installation does not stop there, as it is designed to be used along with the MrCool Pre-Charged Quick Connect Line Set. This allows the installer to easily connect the refrigerant piping, which is precharged with the correct amount of R-410A refrigerant, with the use of simple hand tools. This also means the system will not require any vacuuming once the line set is connected. The MrCool DIY 18K BTU Ductless Wall Mounted Air Handler has the performance to handle your home comfort needs.

Features:

• SmartHVAC app: WIFI control – control your DIY anywhere with your Apple or Android smart device and an Internet connection
• Standard 7-year compressor/5-year parts warranty; register for limited lifetime compressor warranty
• Compatible with Amazon Alexa and Google Assistant
• Includes the new DIY Proƒ ¢¢‚¬Å¾‚ ¢ Cable, an added safety feature to protect the wiring from the outside elements

Additional Information

Series_Extdiy_c_mz

Unit_TypeMini Split

Net_Depth8.90 in

Net_Height13.19 in

Net_Width42.52 in

Net_Weight34.61 lbs

Cooling_Capacity18000 BTU

Heating_Capacity18000 BTU

Voltage208-230 V

Phase1

Cycle60 Hz

Mount_TypeWall

ColorWhite

Color_FamilyWhite

Max_Coverage_AreaUp to 750 sqft

Refrigerant_TypeR-410A

Decibel_Rating44.5/37/31

Decibel_Rating_Low31 dBA

Decibel_Rating_High44.5 dBA

InverterYes

Max_Lineset_Length98.42 ft

Liquid_Line_Size1/4 in

Suction_Line_Size1/2 in

Blower_Motor_Rpm1120/950/700

Fan_Only_OptionYes

Quiet_ModeYes

Auto_Coolyes

Wifi_CompatibilityYes

App_CompatibilityYes

Works_With_IosYes

Works_With_AndroidYes

Remote_Control_IncludedYes

Energy_Star_CertifiedYes

Ahri_CertifiedYes

Registered_WarrantyLimited Lifetime Compressor

Base_Warranty5-year Parts/7-year Compressor

Base_Parts_Warranty5-year Parts

Registered_Compressor_WarrantyLimited Lifetime Compressor

Base_Compressor_Warranty7-year Compressor

Has_BatteriesYes

Contains_ElectronicsYes

Contains_ChemicalsYes

Contains_AerosolYes

Contains_Compressed_GasYes

Proposition_65_WarningYes

Restricted_StatesGU;PR;VI
