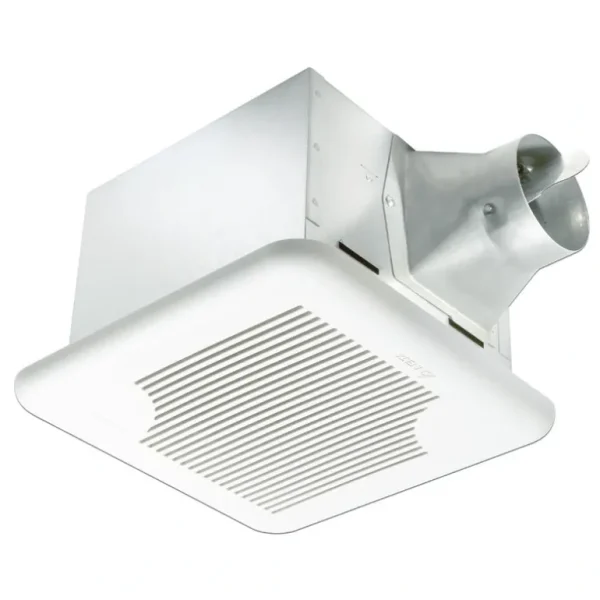

Delta Breez – SIG80D Delta Breez SIG80D – Innovative DC brushless motor design for long life, low noise, and low power consumption

Ventilation fan shall be Delta Breez model SIG80D; ENERGY STAR qualified with Brushless DC Motor engineered to run continuously for a minimum 70,000 hours; airflow rating of 80 CFM and loudness rating of 0.3 Sones at 0.1 static pressure as certified by the Home Ventilating Institute (HVI); power consumption of 8.7 Watts with efficiency rating of 9.7 CFM/Watt; fan will feature LED indicator running light, motor lock protection and self-compensating motor speed for intended airflow when static pressure is encountered. UL and cUL listed for tub/shower enclosure when used with GFCI-protected branch circuit wiring.

Features

• ENERGY STAR^® qualified with innovative brushless DC motor technology
• Perfectly quiet operation at less than 0.3 Sones
• Ceiling mount ventilating fan with dual speed rated for continuous running
• Allows fan to operate in full speed mode or continuous low speed mode by manual switch
• For continuous low speed mode, the fan runs continuously at a user-preset lower level (0, 30, 50, or 60 CFM)
• Delay time preset positions (0.5, 5, 15, 30, 45, or 60 minutes)
• Energy efficiency at 9.7 CFM/Watt
• Green and amber LED indicator lights to show continuous low speed and full speed modes
• Annual energy cost for 24/7 full speed operation is approximately $9.15*

Additional Information

Fan SpeedContinuous Low Speed, Full Speed

Static Pressure (inches w.g.)0.1, 0.25

Air Flow (CFM)30, 31, 50, 50, 60, 61, 80, 79

Sones 0.3, 0.5

Power Consumption (Watts)4.8, 8.9, 6.6, 9.8, 6.7, 11.8, 8.7, 14

Energy Efficiency (CFM/Watts)7.7, 4.1, 8.4, 5.2, 9.9, 5.6, 9.7, 6.3

Current (Amps)0.30 Max

Power Rating (V/Hz)120/60
