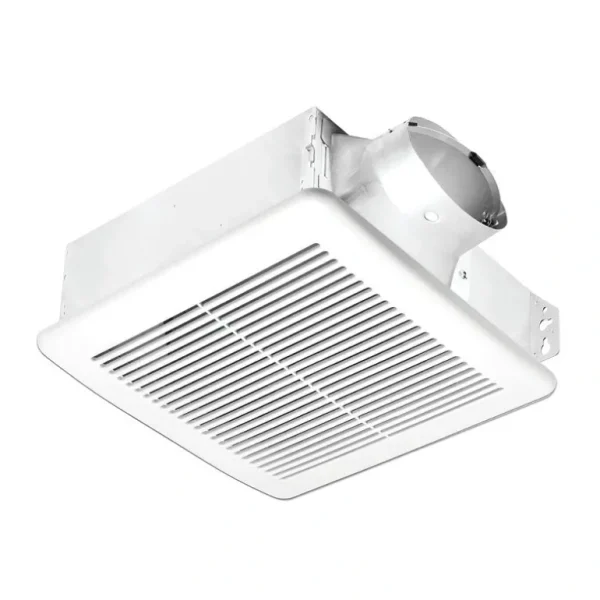

Delta Breez – SLM80-110H-C Delta Breez SLM80-110H-C – Super Low Profile. Super Low Energy Consumption.

Delta BreezSlim SLM80-110H-C is suitable for ceiling or wall mount installation. It is ENERGY STAR qualified with Brushless DC Motor engineered to run continuously for a minimum 70,000 hours; airflow rating of 110 CFM and loudness rating of 1.2 Sones at 0.1 static pressure as certified by the Home Ventilating Institute (HVI); power consumption of 16.5 Watts with efficiency rating of 6.6 CFM/Watt at 0.1” static pressure; fan will feature motor lock protection and self-compensating motor speed for intended airflow when static pressure is encountered. UL and cUL listed for tub/shower enclosure when used with GFCI-protected branch circuit wiring.

Features

• ENERGY STAR^® qualified with innovative brushless DC motor technology
• UL approved for ceiling and wall mount installation. It can fit in a 4″ wall
• 4″ Oval Duct
• SLM80-110H-C can fit withCeiling Radiation Damper SMT-CRD2
• Perfectly quiet operation at 0.4 sones (80 CFM), 1.2 sones (110 CFM)
• Energy efficiency at 9.4 CFM/Watt (80 CFM), 6.6 CFM/Watt (110 CFM)
• Adjustable full speed 80 CFM or 110 CFM
• Allows fan to operate in full speed mode or humidity control mode by manual switch
• For humidity control mode, when humidity is above the user-adjustable set-point, fan runs at full speed. When humidity is below the set-point, the fan runs continuously at a pre-set lower level (0, 50 or 80 CFM)
• Adjustable humidity set points between ~50% to ~80% RH
• Blue and amber LED indicator lights to show humidity control and full speed modes
• Annual energy cost for 24/7 operation is approximately $8.94* (80 CFM) or $17.35* (110 CFM)

SLM80-110H-C Exhaust Fan with Humidity Sensor and Full Speed Adjustable 80/110 CFM

Additional Information

Fan SpeedContinous Low Speed, Full Speed

Static Pressure (inches w.g.)0.1, 0.25, 0.1, 0.25, 0.1, 0.25, 0.1, 0.25

Air Flow (CFM)50, 50, 80, 80, 80, 80, 110, 110

Sones0.3, 0.8, 0.4, 1, 0.4, 1, 1.2, 1.5

Power Consumption (Watts)6, 9.5, 8.5, 14.5, 8.5, 14.5, 16.5, 24

Energy Efficiency (CFM/Watts)8.3, 5.2, 9.4, 5.5, 9.4, 5.5, 6.6, 4.5

Current (Amps)0.6 Max

Power Rating (V/Hz)120/60
