Product Description

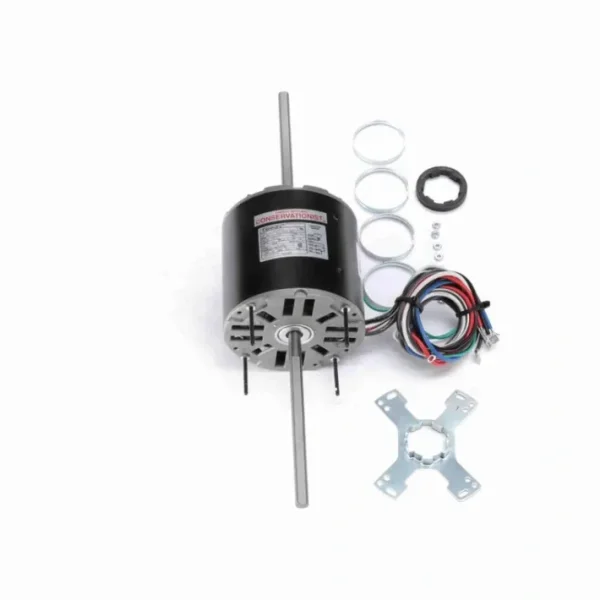

Century – RA1076

• Fan Coil – Room Air Conditioner – Blower Motor
• 5.6″ Diameter – 48 Frame
• Permanent Split Capacitor (PSC); Capacitor Required: 7.5 Mfd-370 Volts (Not Supplied with Motor)
• Thermally Protected
• Open Lead End and Opposite Lead End End-Frame, Semi-Enclosed, Air Over
• Class A Insulation, 40°C Ambient
• Design Upgrade, Converting From Sleeve Bearing to Ball Bearing
• 1/2″ Diameter Double Shaft with Flat
• 35″ Leads
• Extended Studs Lead End, Resilient Ring Opposite Lead End, Resilient Mounting Accessories Supplied with Motor

Additional Information

Thermal ProtectionAutomatic

Speed1075 rpm

Current3.6 A

Number of Speeds3

Ambient Temperature40 °C

ULRecognized

Insulation ClassA

CSAY

Weight19.00 LB

Country Of originMexico

Output HP3/4 Hp

Output KW0.56 kW

Service Factor1

Frame48Y

EnclosureSemi Enclosed

DutyAir Over

Electrical TypePermanent Split Capacitor

Poles6

RotationCounterclockwise Lead End

MountingResilient Ring/Extended Studs

Motor OrientationHorizontal

Drive End BearingBall

Opp Drive End BearingBall

Frame MaterialRolled Steel

Shaft TypeFlat

Frame Length4.75 in

Shaft Diameter0.500 in

Shaft Extension7.4 X.5 X7.3 in

HTC8501.40.4040

CEN

Starting MethodAcross The Line
