Product Description

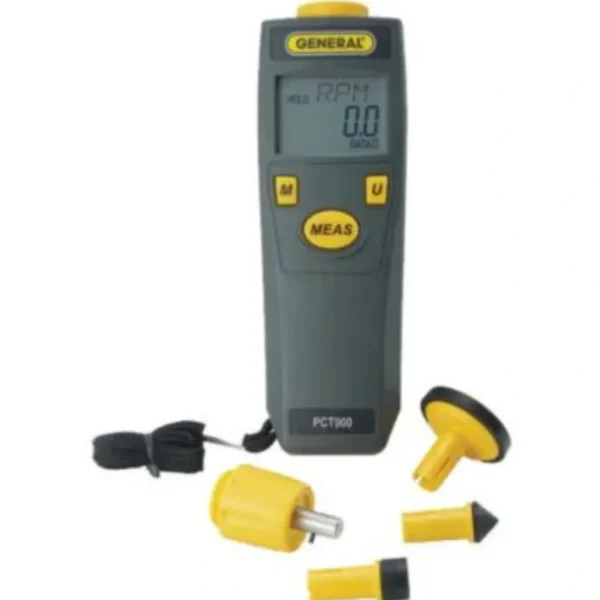

General Tools – PCT900 The #PCT900 tachometer measures rotational speeds using a contact (wheel) or non-contact (laser) technique. It’s ideal for testing and troubleshooting motors, engines, gearboxes, fans and compressors.

• Includes fittings for measuring the speed of a rotating shaft and the linear speed of a conveyor
• Also measures any dimension of a stationary object
• Stores and indexes up to 40 measurements
• Auto ranging
• Jumbo 5-digit LCD
• Min/max/avg memory + data hold
• Auto power off (can be disabled)

Additional Information

ManufacturerGeneral Tools

IncludesThree rubber rpm adaptors Rubber/plastic surface speed wheel 20 in. (500mm) of #RT800 adhesive reflective tape Custom hard plastic carrying case Battery 1-year limited warranty

Dimensions7.75 x 1.93 x 1.14 in. (146 x 49 x 29mm)

Measurement accuracy(0.01% + 1 digit) from 6 to 6000 rpm; (0.05% + 1 digit) at and above 6000 rpm

Auto power offAfter 30 seconds of inactivity

Power source“9V” battery (included)

Measurement resolution0.1 rpm below 1000 rpm; 1 rpm at and above 1000 rpm

Operating temperature32° to 122°F (0° to 50°C) @ 80% RH

Maximum distance to target3.3 ft. (1m)

Measurement ranges6 to 25,000 rpm (contact mode), 6 to 99,999 rpm (non-contact mode)

Weight (without battery)3.4 oz. 96g)

Linear speed measurement range2 to 8202 ft./min (0.6 to 2500m/min)

Linear speed measurement accuracy(0.05% + 1 digit)
