Description

Description

Product Description

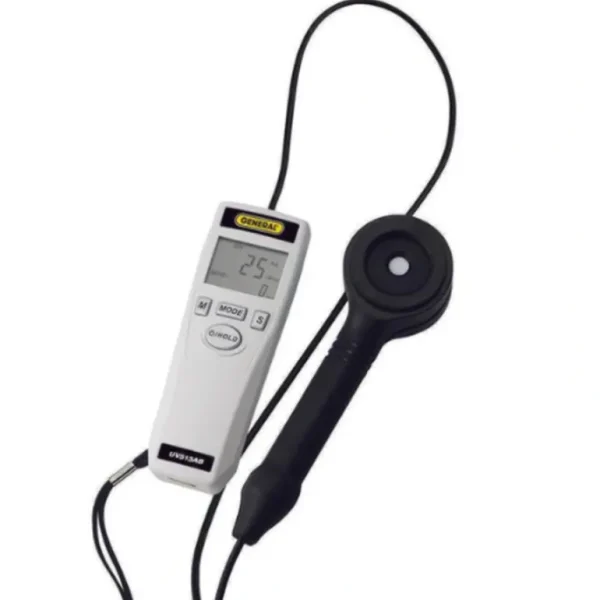

General Tools – UV513AB The #UV513AB UVA/B light meter is ideal for applications including UV curing and sterilization, semiconductor fabrication, offset printing, environmental monitoring and industrial process control.

• Two measurement ranges
• Backlit dual-readout 4-digit LCD
• 20-measurement memory
• Automatic time (interval) recording
• Tripod and magnetic mounts

Additional Information

ManufacturerGeneral Tools

IncludesUVA/B light probe Battery Custom hard plastic carrying case 1-year limited warranty

Dimensions5.51 x 1.93 x 1.14 in. (140 x 49 x 29mm)

Measurement accuracy(4% of reading +1 digit)

Power source“9V” battery (included)

Operating temperature32° to 122°F (0° to 50°C) @ 90%RH

Sampling time0.3 seconds

Measurement ranges1 W/cm2 to 9999 W/cm2 (low); 0.01 mW/cm2 to 40 mW/cm2 (high)

Memory capacity20 measurements, plus 1 for interval time

Spectral range280 to 400 nm

Calibration point365nm

Interval time options1, 2, 5, 10 and 30 seconds and 1, 3, 5 and 10 minutes
