Goodman – CAPFA2922A6

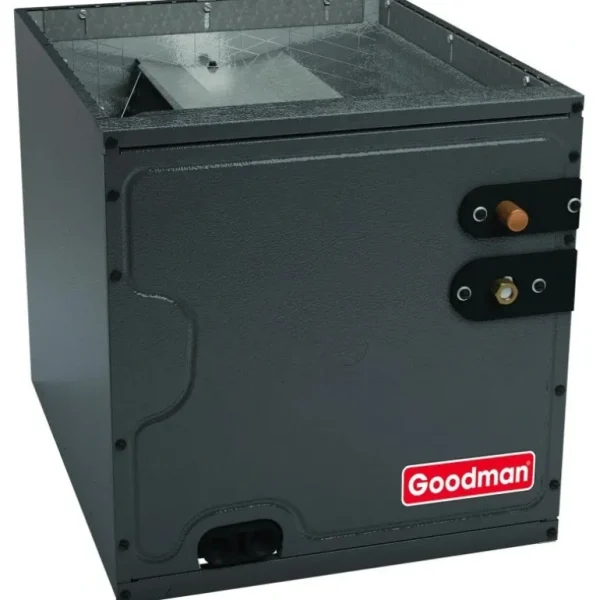

With the CAPFA2922A6 evaporator coil, Goodman provides an enhanced comfort to your home. With its ability to work with AC-only systems or with heat pumps and its ability to be installed in both the upflow or downflow orientations, the CAPFA2922A6 is designed to be versatile in design and to provide an efficient comfort at a low cost.

QUICK FACTS

• 2.5 ton evaporator coil
• Installable in the upflow or downflow configurations
• Usable with either a heat pump or an AC-only condenser
• Low air leakage
• Check flowrater expansion device for use in any application

2.5 Tons

The Goodman CAPFA2922A6 evaporator coil is rated for a 2.5 ton output. In many system configurations, this coil may be larger in tonnage than its paired condenser. This is intentional, to maintain the overall efficiency of the entire system.
Please note that in order for this coil to function, a furnace or blower and a condenser is required, all sold separately.

Warranty

The CAPFA2922A6 coil is covered under Goodman™s standard 10 year parts warranty when the unit is installed following your state and local codes, the coil is paired with a compatible condenser, and the entire system is registered online through the manufacturer.

Installation and Durability

The Goodman CAPFA2922A6 evaporator coil is able to be installed in upflow and downflow applications. With its rust-resistant, thermoplastic drain plan, water retention rate is significantly lower than previous models. For even more enhanced durability, the cabinet is made of a strong galvanized-steel with a leather-grain finish. If you ever need to perform maintenance on your coil, there is a split-seam on the front of the casing for easy internal access.
Please note that this coil will not work as a replacement for any single-piece air handler coils.

Enhanced Comfort

The CAPFA2922A6 evaporator coil™s foil-faced insulation lowers air leakage, increasing the amount of air flow going into your ductwork, keeping you more comfortable while decreasing the unit™s run time. With compatible equipment, the CAPFA2922A6 evaporator coil lives up to Goodman™s enhanced comfort and efficiency standards at a reasonable price.

Additional Information

SKU CAPFA2922A6

Weight (in lbs) 45.000000

Brand/Manufacturer Goodman

Configuration Upflow / Downflow

Refrigerant R410A or R22

Liquid Line 3/8″

Suction Line 3/4″

Tonnage 2.5 Ton

Style A-Coil

Height 22″

Width 14″

Depth 21″

Warranty 10 Years with Online Registration
