Product Description

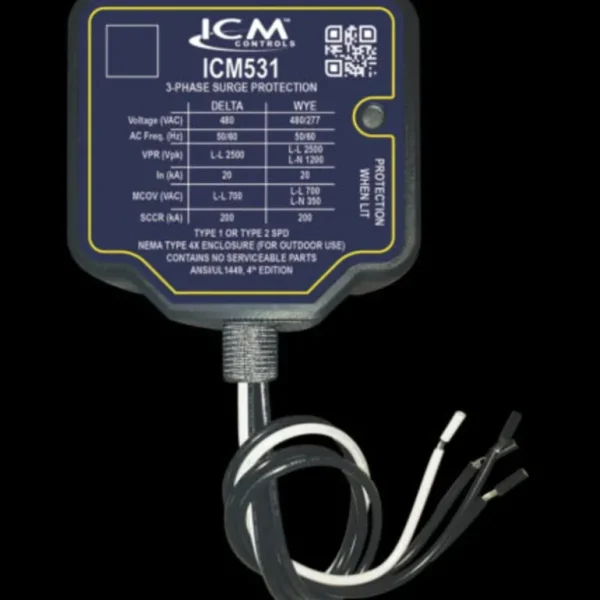

ICM – ICM531

DETAILS:

3-Phase Surge Protective Device, 480VAC (Delta) or 277/480VAC (Wye)

• Delta or Wye Configuration
• NEMA Type 4X watertight plastic enclosure for outdoor and indoor installation
• Green LED indicates surge protection present
• Easily connects to electrical panel or disconnect for indoor and outdoor applications
• UL Listed Type 1 or Type 2 SPD

WEIGHT/DIMENSIONS:

4.30 x 4.10 x 2.30

SPECIFICATIONS:

Service Voltage (3-Phase): 480 VAC Delta or 277/480 VAC Wye

Short Circuit Current Rating (SCCR): 200 kA

Nominal Discharge Current (In): 20kA

Maximum Surge Current: 150,000 amps

Protection Mode:

• 3 for Delta configuration
• 6 for Wye configuration (neutral tied to ground)

Maximum Continuous Operation Voltage (MCOV):

• L-L: 700 VAC
• L-N: (for Wye configuration only): 350 VAC

VPR:

• Delta L-L: 2500 VAC
• Wye L-L: 2500 VAC
• Wye L-N: 1200 VAC

SPD Type: Type 1 (can also be used in Type 2 applications)

Surge Protection Technology: TFMOV

Input Power Frequency: 50/60 Hz
