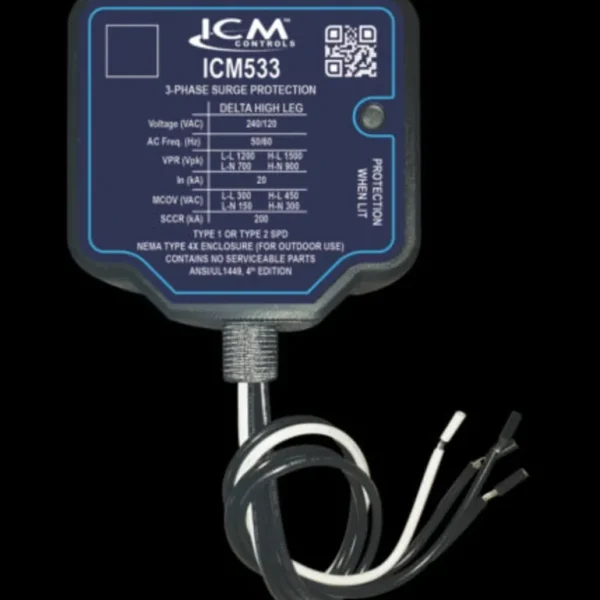

ICM – ICM533

DETAILS:

3-Phase Surge Protective Device, (Delta) High-Leg 120/240 VAC

• Delta High-Leg Configuration
• NEMA Type 4X watertight plastic enclosure for outdoor and indoor installation
• Green LED indicates surge protection present
• Easily connects to electrical panel or disconnect for indoor and outdoor applications
• UL Listed Type 1 or Type 2 SPD

WEIGHT/DIMENSIONS:

4.30 x 4.10 x 2.30

SPECIFICATIONS:

Service Voltage (3-Phase): 120/240 VAC Delta High-Leg

Short Circuit Current Rating (SCCR): 200 kA

Maximum Surge Current: 150,000 amps

Nominal Discharge Current (In): 20kA

Protection Mode: 3 for Delta configuration

Maximum Continuous Operation Voltage (MCOV):

• L-L: 300 VAC
• H-L: 450 VAC
• L-N: 150 VAC
• H-N: 300 VAC

VPR:

• L-L: 1200 VAC
• H-L: 1500 VAC
• L-N: 700 VAC
• H-N: 900 VAC

SPD Type: Type 1 (can also be used in Type 2 applications)

Surge Protection Technology: TFMOV

Input Power Frequency: 50/60 Hz
