Description

Description

Product Description

iO HVAC Controls – MBD-1612-BM ACTUATORS ARE INSTALLED ON 2ND DIMENSION

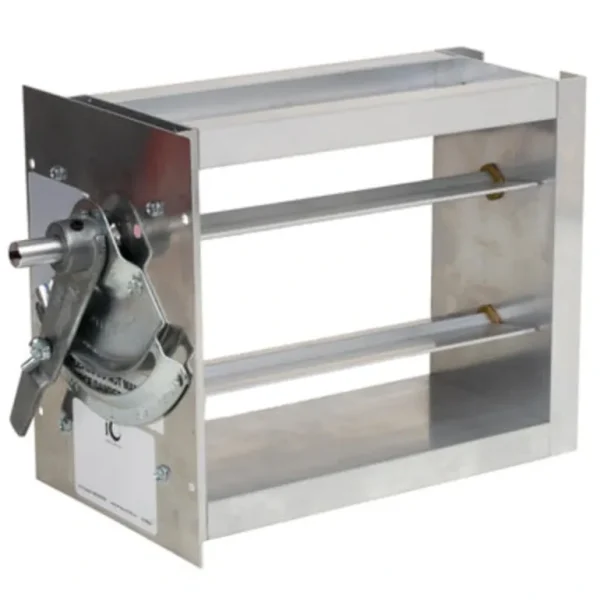

Manual Rectangular 16 x 12 Zone Damper-BM

Height: 16

Width: 12

Total Size: 16 x 12

Actuator Placement on the dimension: 16

Description

The HD Series dampers are extruded aluminum parallel blade dampers with a 24 volt spring return actuator. These dampers are shipped complete and ready for installation. The HD Series dampers can be installed in any position. They are rated for duct systems with less than 1.0” WC. The damper has a simple adjustment for setting the minimum position.

Features and Benefits

• Compatible with most zone control panels
• Extruded aluminum
• 24 volt synchronous motor
• Quiet operation
• Simple adjustment for setting the minimum position

Warranty: 5 years

Specifications

Construction: Extruded aluminum
Sizes: 6” x 6” to 36” x 24” side-mount or bottom-mount motor
Damper Actuator Type: 24VAC, 10VA, two-wire power close/spring open

Additional Information

Item NumberMBD-1612-BM

BrandiO HVAC Controls

MotorizedNo

ShapeRectangular

Size (in)16 x 12

Spring ReturnSpring Return (NC)

TypeRectangular Dampers
