Description

Description

Product Description

Klein Tools – CL220 The CL220 measures AC current and NCVT via clamp and AC/DC voltage, resistance, and continuity via test-leads, and temperature with thermocouple. The meter features automatically ranging True Root Mean Squared (TRMS) measurement technology for accuracy. Additionally, a backlit LCD makes viewing in low light easy.

• Measures AC current and NCVT via clamp and AC/DC voltage, resistance, and continuity via test-leads, and temperature with thermocouple
• Non-contact voltage tester integrated into the clamp jaw
• Backlit LCD for ease of viewing in low light
• Automatically ranging True Root Mean Squared (TRMS) measurement technology for accuracy
• Test lead holder on side of clamp and optional magnetic hanger for meter (Cat. Nos. 69445 or 69417) for hands free operation
• Measures temperature with a K-Type thermocouple probe
• Auto-Range, Hold, Data Hold, and Max value
• Auto-power off after 10 minutes to conserve battery life

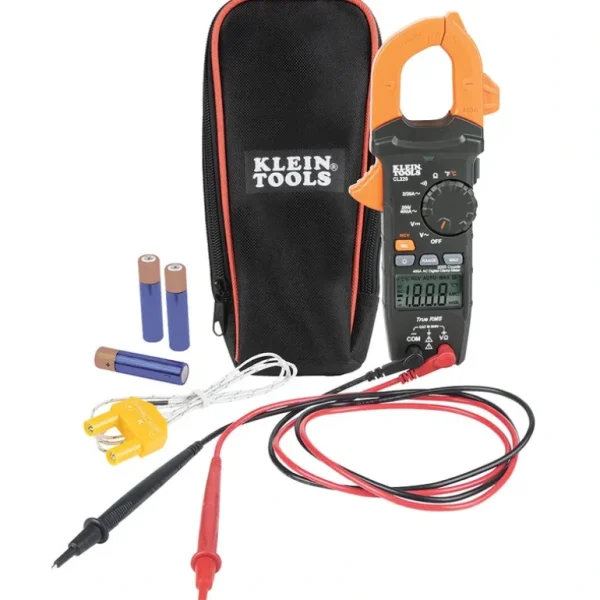

• Includes a carrying case, test leads with CAT III/CAT IV safety caps, thermocouple, instructions, and 3 x AAA batteries
• Low battery indicator and easily accessible battery compartment
• Built to withstand a 6.6-Foot (2 m) drop
• CAT III 600V, Class 2, Double insulation safety rating
• Meets requirements for use in basic and controlled electromagnetic environments like residential, office and light-industrial locations

Additional Information

Type:Auto Ranging TRMS Clamp with Temperature

Application:Measures AC Current and NCVT via Clamp and AC/DC Voltage, Resistance, and Continuity via Test-leads, and Temperature with Thermocouple

Special Features:Automatically Ranging True Root Mean Squared (TRMS) Measurement Technology for Accuracy; NCVT; Added Temperature

Material:ABS/Electronics

Batteries:3 x AAA

Auto-Power Off:Yes

Jaw Size:1.6″” (4.1 cm)

Drop Protection:6.6″ (2 m)

Display:2000 Count Backlit LCD

Functions:TRMS, AC Current, NCVT, AC/DC Voltage, Resistance, Continuity and Temperature

Voltage:600 V AC/DC

Current:400 A AC

Ohms (Resistance):20 M„¦

AC Voltage:600 V

DC Voltage:600 V

DC Polarity Indicator:Yes

Temperature Range:-40° – 1832°F (-40° – 1000°C)

Standard:CATIII 600V, Class 2, Double Insulation Safety Rating, CE Certified

Included:Carrying Case, Instructions, Test Leads, Thermocouple, and Batteries

Overall Length:8.45″” (21.5 cm)

Overall Height:1.5″” (3.8 cm)

Overall Width:3.5″” (8.9 cm)

Weight:11 oz (314 g)
