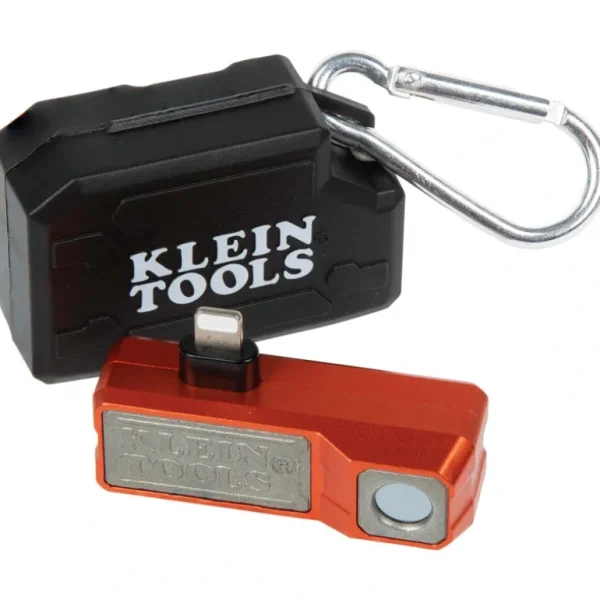

Klein Tools – TI222 The Klein Tools TI222 Thermal Imager for iOS Devices has 10,800 pixels delivering excellent resolution to troubleshoot hot and cold spots. This Thermal Imager is perfect for detecting hot spots in panels, on wiring, or on parts of equipment; helping find sources of energy loss within a home/building; helps detect moisture behind walls and flooring; clogs in pipes; and much more. Fits phone cases up to 1/16-Inch (1.5 mm). Phone cases thicker than 1/16-Inch (1.5 mm) may require removal of case for secure connection. Easily capture, store, and share thermal images and video through the Klein Tools Thermal Imager App, available for free in the App Store.

• Thermal Imager for iOS Devices has 10,800 pixels to deliver excellent resolution for troubleshooting hot and cold spots
• Fits phone cases up to 1/16-Inch (1.5 mm); phone cases thicker than 1/16-Inch (1.5 mm) may require removal of case for secure connection
• Easily capture, store and share thermal images and video, including time-lapse video
• Features touch screen temperature, high/low temperatures, and differential temperature readout
• View temperature ranges from -4 to 752-Degree Fahrenheit (-20 to 400-Degree Celsius) in three color palettes; ironbow, rainbow, or grayscale
• Includes high/low temperature alarms to monitor systems
• Compatible with iOS devices 11 and higher
• Klein Tools Thermal Imager App is available for free in the App Store
• Durable 6.6-Foot (2 m) drop test protection

Additional Information

Type:Thermal Imager

Application:View Hot and Cold Spots For Instant Troubleshooting

Special Features:High and Low Temperature Points, Touch-Point Temperature, Options for Temperature Alarms, Time-Lapse Video, 3 Color Palettes

Display:External Device

Display Resolution:10,800 Pixels

Sensor Type:VOx Microbolometer

Sensor Resolution:10,800 Pixels

Thermal Sensitivity:60 mK at 25°C

Spectral Range:8 to 14 μm

Temperature Range:-4° to 752°F (-20° to 400°C)

Accuracy:+/-2°C or 2% (whichever is greater). Not calibrated below 10°C (14°F)

Field of View:Horizontal: 50°, Vertical: 50°

Laser Sighting:No

Emissivity:0.01 to 0.99, Adjustable

Color Palettes:Ironbow, Rainbow, and Grayscale

Photo Capture:Yes

Maximum Frames per Second:9 Hz

Memory:External Device

Batteries:Powered from External Device

Included:Hard Storage Case with Carabiner and Instructions

Overall Length:2.13″” (5.4 cm)

Overall Width:0.73″” (1.9 cm)

Overall Height:1.07″” (2.7 cm)

Material:Aluminum Housing, Electronic Components

Standards:CE and UKCA

Weight:1 oz (31 g)
