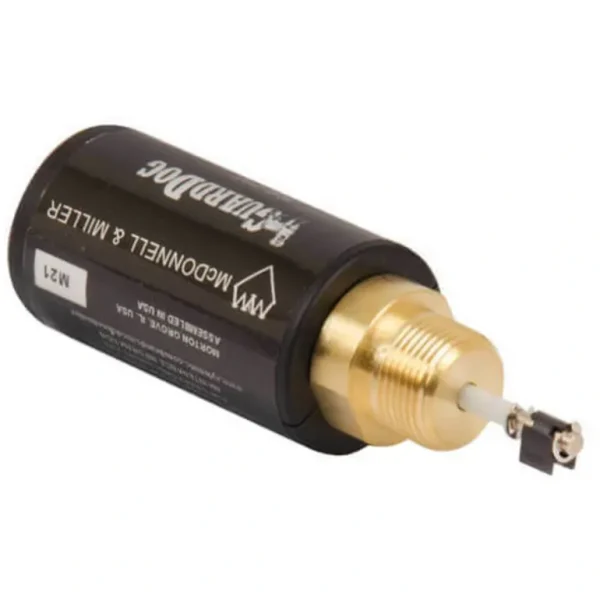

McDonnell & Miller – 144696

Specifications

• Test button to quickly confirm proper operation
• Universal wiring harness fits 100% of today’s gas boilers
• Brass threads enable a secure and trouble-free installation
• -S, -A and -L models provide “plug play” installation with most residential boilers
• Compact size
• Easy to install and wire
• Automatic reset feature resumes operations after a power
• outage when water is on probe
• Green LED indicating power on
• Red LED indicating low water condition
• Solid state operation
• 15,000 ohms probe sensitivity
• Maximum ambient temperature 120 Deg. F (49 Deg. C)
• Maximum water temperature 250 Deg. F (121 Deg. C)
• Maximum water pressure of 50 psi (3.5 kg/cm3)

Additional Information

ApplicationHot Water Boilers

TypeElectronic

Reset TypeAutomatic

Max Pressure (PSI)160

Featuresw/ Vent Damper Harness

Max Temp (F)250°F

Sensitivity15000 ohms

Voltage24v

Length5-3/4″

Max Ambient Temp (°F)120°F

Width1-7/8″

Connection TypeThreaded

Thread Size3/4″

VA Rating2.5
