Product Description

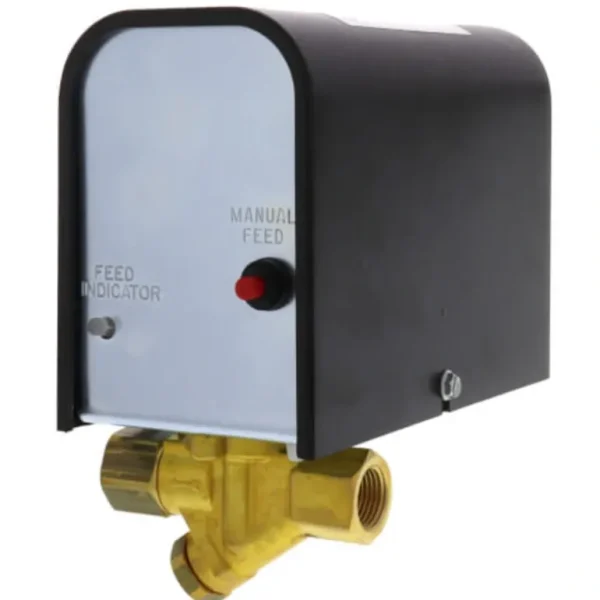

McDonnell & Miller – 169550 McDonnell Miller Universal Water Feeders are ideal for use in residential or small commercial applications. Versatile and compact, they are easily installed to operate with either a probe- or float-type low water cut-off. The feeders are always ready to add water when given the signal from the LWCO – no need to manually add water. And they protect the boiler from a dry fire condition by maintaining a safe minimum water level in the boiler should a system leak occur. They monitor the water level, maintaining a safe minimum and allow the boiler water line to rise and fall naturally through its normal operating range.

Features

• Multi-color LED
• Four position on/off dip switch
• Water supply pressures to 150 psi; boiler pressures to 15 psi
• 3/8″ NPT connection

Additional Information

ApplicationSteam Boilers

TypeFloat-StyleElectronic

Max Pressure (PSI)150

Max Vessel Pressure15 psi

Voltage24v

Max Inlet Water Temp (F)120°F

Max Ambient Temp (°F)100°F

Height6.25″

Width (Inches)2-7/8″

Power Consumption15 VA

Feed Rate5

Connection TypeThreaded

Size3/8″
