MRCOOL 12k BTU 22 SEER DIY Series Ductless Wall Mounted and Heat Pump Split System 4th Generation – One-stop shop for professional tools and equipment.^ Hand

Description

Description

Product Description

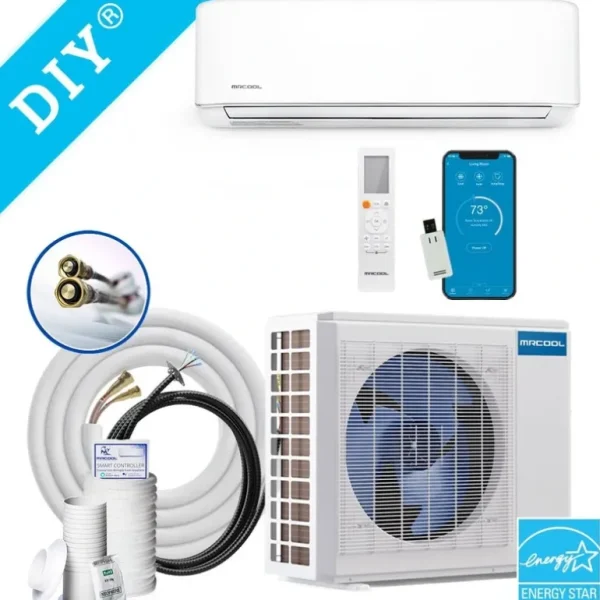

MRCOOL – DIY-12-HP-C-115C25

The 4th Generation MrCool DIY 12K BTU 22 SEER Ductless Heat Pump Mini Split System is now backed by the best warranty in the industry! The new limited lifetime compressor warranty in addition to a 7-year unit replacement warranty and 5-year parts warranty are sure to lengthen the life of your ductless mini split system.This is the first ductless mini split to offer a limited lifetime compressor warranty in the entire market.

The 4th Generation MrCool DIY 12K BTU 22 SEER Ductless Heat Pump Mini Split System also includes the new DIYPRO Cable. The DIYPRO Cable eliminates the need for an electrical conduit when installing the unit. With easy crimp connectors and protection against weather, animals, and yard work tools, this cable gives higher mechanical protection and durability, giving a longer life to your heat pump mini split system.

Additional Information

Heat Pump Condensor Specifaction:

DIY-12-HP-C-115C25

Model DIY-12-HP-C-115C25

AHRI Number 207339187

UPC 810035933743

Avg Coverage Area 500 – 600 Sq Ft

Compressor Inverter

Cooling Capacity 1 Ton

Electrical Phase 1-Phase

Heat Pump Efficiency (HSPF) 11.5

Line Set Connection Type Quick Connect

Liquid Line Size 1/4 inch

Max Overcurrent Protection 25 amps

Primary Heating Capacity 10,001 – 15,000 BTU

Product Height (in) 21.85

Product Length (in) 11.93

Product Width (in) 30.12

Refrigerant R-410a

Cooling Efficiency 19 SEER and Above

Series DIY

Suction Line Size 1/2 inch

System Application Type Ductless Split Systems

Voltage 120

Warranty 5 Year Parts, 7 Year Compressor

Weight (lbs) 65.7

Region Compatibility Nationwide

Additional Information

Wall Mount Air Handler Specification :

DIY-12-HP-WMAH-115C25

Model DIY-12-HP-WMAH-115C25

UPC 810063868499

Air Flow Direction Horizontal

Configuration Wall Mounted

Blower Motor Variable Speed

Cooling Capacity 1 Ton

Electrical Phase 1-Phase

Line Set Connection Type Quick Connect

Liquid Line Size 1/4 inch

Max Overcurrent Protection 15 amps

Product Height (in) 11.69

Product Length (in) 7.44

Product Width (in) 31.57

Refrigerant R-410a

Series DIY

Suction Line Size 3/8 inch

System Application Type Ductless Split Systems

Voltage 120

Warranty 5 Year Parts

Weight (lbs) 34.17
