Product Description

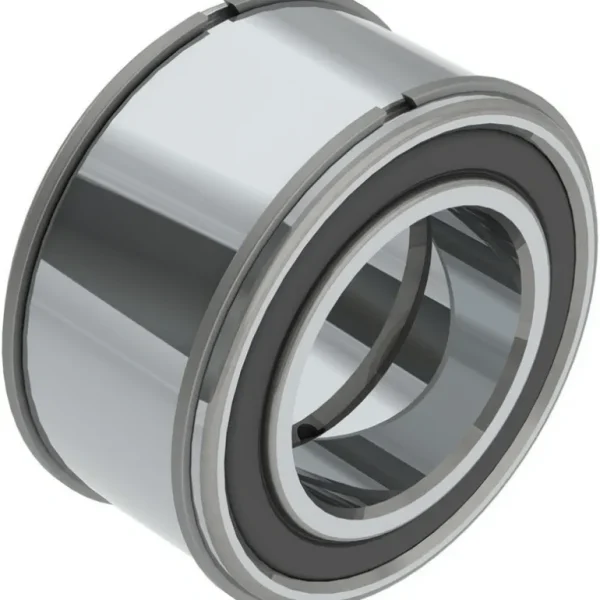

Nachi America – E5014XNNTS1 This bearing type is designed as a double row, full complement Cylindrical Roller bearing with ribs on both inner and outer rings. These bearings will sustain heavy radial load, and will handle moment load and will also take some axial load. Sheave bearings are suitable for a wide variety of uses in addition to sheaves. They are used for hoisting drum and wheel applications, and other applications which operate under heavy load at low speed.

Features

Easy to locate axially by using snap rings on both sides of the outer ring. Center groove and holes on the inner ring allow for easy relubrication.

Additional Information

Seals or Shields 2 NBR Contact Seals

Rolling Element Material Steel

Inner Ring Material Steel

Outer Ring Material Steel

Rows of Balls Double

Bore Type Cylindrical Bore

Static Load Rating 285000 N

Radial Internal Clearance CN/C0

ISO Precision Class P0

Dynamic Load Rating 170000 N

Temperature Range [Max] 248 °F

Limiting Speed – Grease 1400 rpm

Grease Fill Mobilux EP2

Snap Ring With Snap Ring

Cage Material Steel

EAN or UPC 4991893331073
