Description

Description

Product Description

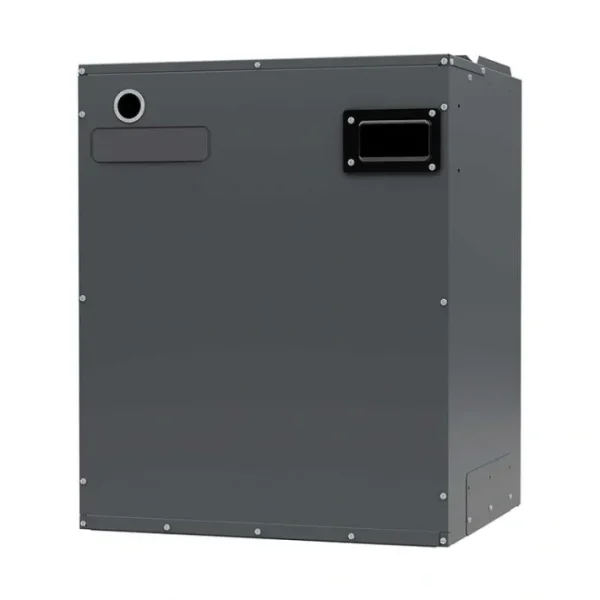

Daikin – MBVC2000AA-1 MBVC Ducted Multi-position Modular Blower, Variable Speed ECM Motor, 2000 CFM, 24-1/2 in Cabinet, One+ Smart Thermostat compatible

Specifications :

• Variable-speed ECM blower motor
• Compatible with Daikin One+ smart thermostat and other Daikin communicating equipment
• Advanced configuration of the airflow and tonnage in communicating mode
• Provides constant CFM over a wide range of static pressure conditions independent of duct system
• CFM indicator
• Fault recall of six most recent faults
• Provides adjustable low CFM for efficient fan-only operation
• Improved humidity and comfort control
• Built-in compatibility with multi-stage heat pump and cooling applications
• 3 kW 21 kW electric heat kits
• Blower section usable as electric heater
• Horizontal or vertical configuration capabilities
• 21″ depth for easier attic access
• Foil-faced insulation covers the internal casing to reduce cabinet condensation
• Galvanized, leather grain-embossed finish
• Cabinet air leakage less than 2% at 0 inch H20 when tested in accordance with ASHRE standard 193
• Cabinet air leakage less than 4% at 0.5 inch H20 when tested in accordance with ASHRE standard 193
• AHRI certified
• ETL listed

Cabinet Features :

• Horizontal or vertical configuration capabilities
• 21″ depth for easier attic access
• Foil-faced insulation covers the internal casing to reduce cabinet condensation
• Galvanized, leather grain-embossed finish
• Cabinet air leakage less than 2% at 0 inch H20 when tested in accordance with ASHRE standard 193
• Cabinet air leakage less than 4% at 0.5 inch H20 when tested in accordance with ASHRE standard 193

Additional Information

BrandCorporate

Prop65 Label RequiredTRUE

Unit Depth21 in

Unit Height30 in

Unit Width24-1/2 in

Family DescriptionMulti-Position, Variable-Speed ECM-Based, Modular Blower Communicating

FamilyMBVC

RefrigerantR-410A

Unit TypeIndoor

Unit Weight86 lb

Airflow Rate High Cooling2000 ft³/min

Max. Voltage253 V

Min. Circuit5.8 A

Min. Voltage197 V

Motor Speed TypeVariable Speed ECM

Power Frequency60 Hz

Power Phase1 Ph

Power Voltage208-230 V
