Outlet Daikin AVPTC39C14 AVPTC Air Handler, Variable Speed ECM Motor, 3 Ton – One-stop shop for professional tools and equipment. Hand

Description

Description

Product Description

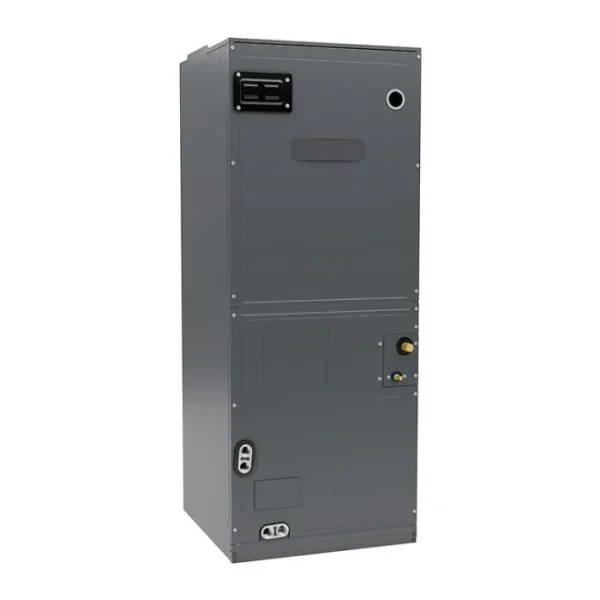

Daikin – AVPTC39C14 AVPTC Ducted Multi-position Air Handler, Variable Speed ECM Motor, 1.5-5 Ton, 21 in Cabinet with TXV Expansion, ComfortBridge Technology compatible

Specifications :

• Internal factory-installed thermal expansion valves for cooling and heat pump applications
• Variable-speed ECM blower motor
• Integrated communicating ComfortBridge Technology
• Commissioning and diagnostics via on board Bluetooth with the CoolCloud phone and tablet application.
• Auto configuration of the airflow and tonnage in communicating mode
• Provides constant CFM over a wide range of static pressure conditions independent of duct system
• CFM indicator
• Fault recall of six most recent faults
• Provides adjustable low CFM for efficient fan-only operation
• Improved humidity and comfort control
• 1 Built-in compatibility with multi-stage heat pump and cooling applications

Cabinet Features :

• Rigid SmartFrame„¢ cabinet
• Cabinet air leakage less than 0% at 0 inch H‚‚O when tested in accordance with ASHRAE standard 193
• Cabinet air leakage less than 4% at 0.5 inch H‚‚O when tested in accordance with ASHRAE standard 193
• Horizontal or vertical configuration capabilities
• 21″ depth for easier attic access
• DecaBDE-free thermoplastic drain pan with secondary drain connections
• Screw-less sides and back helps to reduce condensation when installed in humid locations
• Foil-faced insulation covers the internal casing to reduce cabinet condensation
• Galvanized, leather grain-embossed finish
• 10 .Glue-less cabinet insulation retention

Additional Information

BrandCorporate

Prop65 Label RequiredTRUE

Unit Depth21 in

Unit Height49 in

Unit Width21 in

Family DescriptionMulti-Position, Variable-Speed, ECM-Based Air Handler with Internal TXV ComfortBridge⢠Compatible 1½ to 5 Tons

FamilyAVPTC

RefrigerantR-410A

Tonnage3 tons

Unit TypeIndoor

Unit Weight118 lb

Max. Voltage253 V

Min. Circuit6.5/6.5 A

Min. Voltage197 V

Motor Speed TypeVariable Speed ECM

Power Frequency60 Hz

Power Phase1 Ph

Power Voltage208/240 V

Indoor Blower FLA5.2 A

Blower Motor RPM1250 r/min
