Product Description

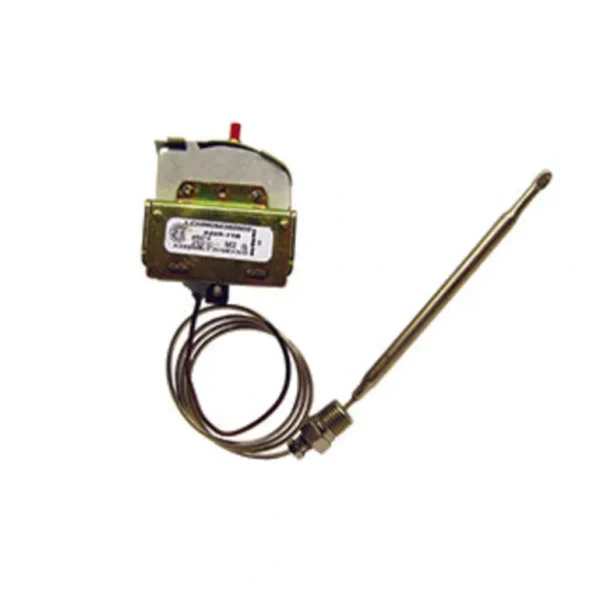

Robertshaw – 5225-112 The Robertshaw 5225 Series Limit Control is designed for any appliance where temperature protection is needed. All 5225 Series controls are non-adjustable, factory calibrated, and feature negative biased power element diaphragms. The 5225 Series is a proven safety control for commercial and specialty applications. They are available in automatic or manual reset versions with temperature settings from 425°F to 600°F (218°C to 316°C).

Features and Benefits

• Bulb and capillary assemblies available in nickel plated copper
• Available in manual reset or automatic operation
• Control function is designed to interrupt power in the appliance circuit at the calibrated temperature

Additional Information

Additional Information

Series ApplicationLCH Manual Reset Limit Control

Temperature Range450°F

CommentsPitco #PP10084, DCS 13245SPST – Break on Temperature Rise Manual Reset. Type M2M2 switch – trip free – will not recycle if reset button is depressed

Agency ApprovalsUL Rating: 30 Amps, 250V AC @ 125-480V AC|35 VA PD @ 24V AC; CSA Rating: 30 Amps @ 125-480V AC; European: 30 Amps @ 480V AC

Mounting Type#3

Factory Part NumberLCHM-05-030-00-00

Capillary Length30″

Bulb Size1/4″ x 4-7/8″ Nickel

Stuffing Box1/4″
