Product Description

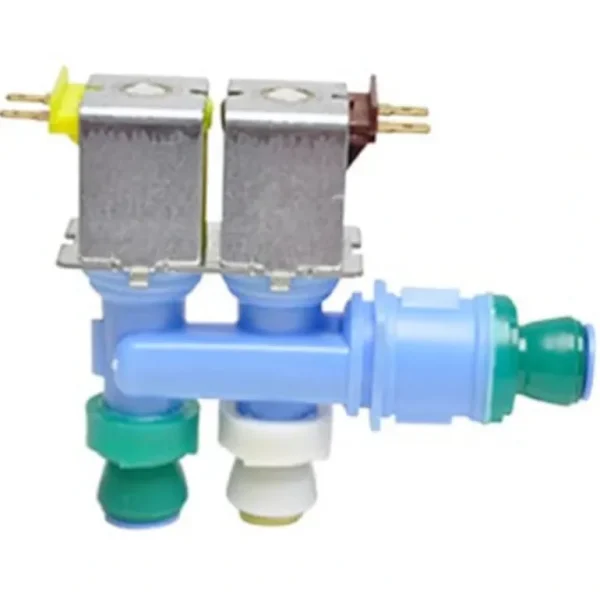

Robertshaw – IMV-322 The Robertshaw S-86 Single and N-86 Dual Water Valve Series are automatic icemaker valves for residential refrigerator icemakers. The N-86 valve allows individual control of water flow through two outlets by using a single inlet for water to the door and for water to fill the icemaker.

Features and Benefits:

• Direct acting armature provides high flow capacity with minimum power requirements
• Encapsulated coil provides high mechanical and dielectric strength, and is moisture resistant
• Unique armature and seat design reduce unwanted particles from entering the armature area
• Armature is designed with clearances which minimize the possibility of jamming due to foreign materials
• Bodies are made of polypro which provides high resistance to corrosion and mineral deposits
• Suitable for applications using water at temperatures up to 160°F (71°C)

Additional Information

Additional Information

Series ApplicationResidential Ice Machine Water Valve N-86 Dual Inline

Electrical Rating120V AC, 60 Hz, 20W/35W

Outlet1/4″ quick connect, 5/16″ quick conenct

ReplacesWhirlpool 12956102, Whirlpool 67006322

Factory Part NumberK-76376

Inlet Size5/16″ quick connect

Operating Pressure20 PSI to 120 PSI

Flow Rate115-154 CC in 7.5 seconds, 40-80 CC per second

Terminals1/4″ Male, 3/16″ Male

Body MaterialPolypro
