Description

Description

Product Description

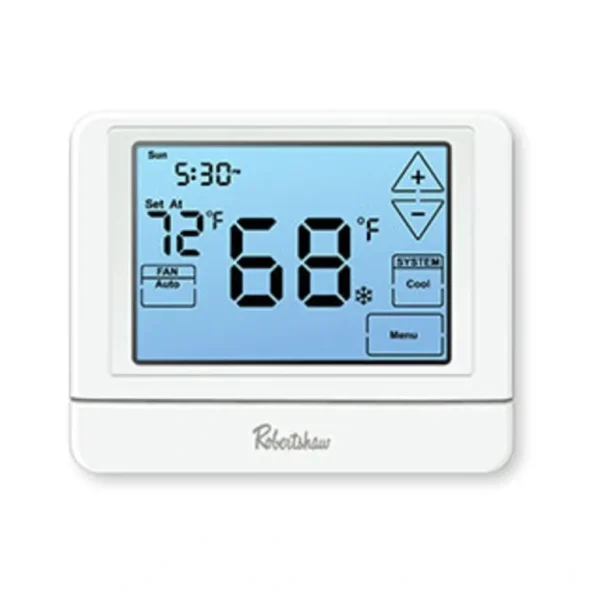

Robertshaw – RS9110T Contractors can offer owners easy, yet powerful and reliable single-stage heating and cooling control in a simple, modern design with the RS9110T programmable Touchscreen wall thermostat.
Single Stage – 1 Heat / 1 Cool

‚¬ Large terminal blocks for easy installation
‚¬ Universal sub-base
‚¬ Quick-access menu button
‚¬ Contractor/technician setup menu
‚¬ Easy-to-understand programming menus
‚¬ Intuitive wake, leave, return, sleep programming icons
‚¬ 24V AC Powered OR Battery Operation (Included)
‚¬ 6Year Limited Warranty
‚¬ Factory pre-set energy efficiency program
Simple, yet powerful control.
‚¬ Large, easy-to-read 8.8-square-inch blue backlit touchscreen display
‚¬ Easy-access front-load battery compartment
‚¬ Adjustable temperature differential (swing) for energy optimization and maximum
‚¬ Auto changeover
‚¬ Five-minute selectable on/off compressor delay protection for short-cycling prevention
‚¬ Minimum compressor run time
‚¬ Filter change reminder
‚¬ Keypad lockout

Additional Information

Additional Information

Series ApplicationSingle-Stage 1 Heat / 1 Cool Programmable Touchscreen

Temperature Range32°F to 99°F (1°C to 40°C)

Mounting TypeWall or junction box

Factory Part NumberRS9110T

Power Source24V AC (18 to 30V AC), 50/60 Hz for hardwire common wire or 2 AAA 1.5V alkaline batteries (included)

Dimensions4.7 x3.8 x 1in (119.6 x 97.6 x 26mm)

TerminalsRh, Rc, C, Y, W, G, O, B

Control Temperature41°F to 90°F (5°C to 32°C)

System Fuel SourceGas, electric or oil

Heat Pump CompatibilitySystems without auxiliary or emergency heat

Millivolt Application CompatibilityYes

Display Accuracy+- 1°F (at 68°F) / +- 1°C (at 20°C)
