Product Description

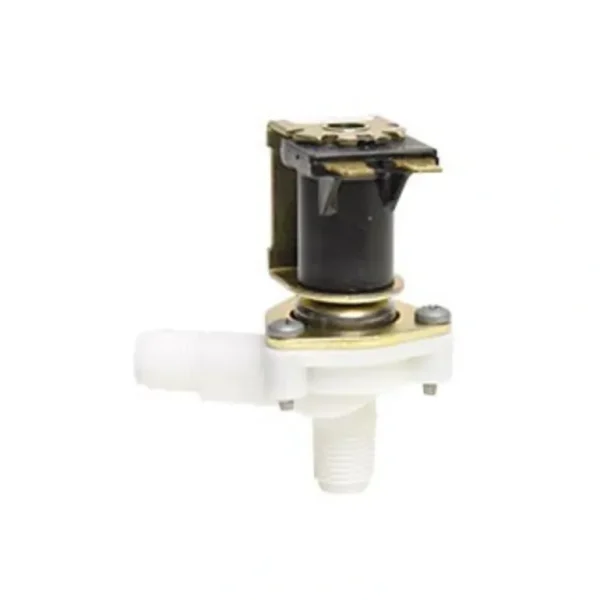

Robertshaw – IMV-3404 The Robertshaw S-30 Water Valve Series is designed for low flow applications in residential refrigerator icemakers, commercial ice machines, dishwashers, energy-conserving plumbing and heating applications.

Features and Benefits:

• Single solenoid valve with a pilot-operated diaphragm provides high flow capacity with minimum power requirements
• Encapsulated coil provides high mechanical and dielectric strength, and is moisture resistant
• Unique diaphragm design reduces unwanted particles from entering the armature area
• Armature is designed with clearances which minimize the possibility of jamming due to foreign materials
• Bodies are made of polypro which provides high resistance to corrosion and mineral deposits
• Suitable for applications using water at temperatures up to 160°F (71°C)

Additional Information

Additional Information

Series ApplicationCommercial Ice Machine Water Valve S-30

Electrical Rating120V AC, 60 Hz, 10W

Outlet1/4″ 18 NPT

ReplacesScotsman 12-1434-04

Factory Part NumberK-63314-14

Inlet Size1/4″ 18 NPT

Operating Pressure20 PSI to 120 PSI

Flow Rate0.5 GPM

Terminals1/4″ Male

Body MaterialPolypro
