Product Description

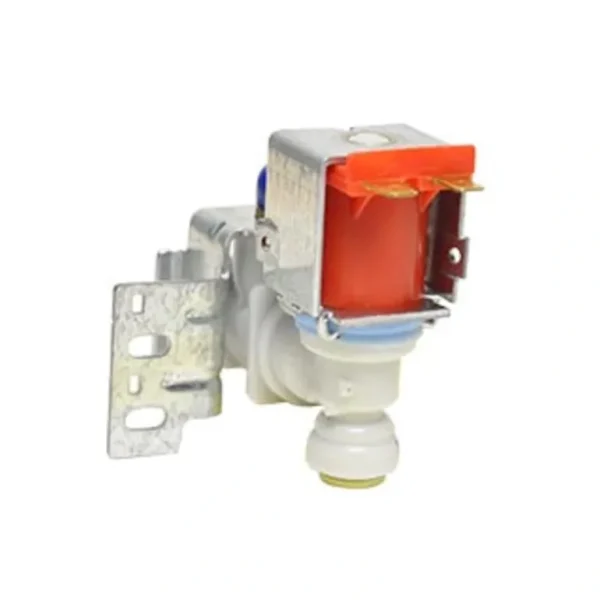

Robertshaw – IMV-716 The Robertshaw S-86 Single and N-86 Dual Water Valve Series are automatic icemaker valves for residential refrigerator icemakers. The N-86 valve allows individual control of water flow through two outlets by using a single inlet for water to the door and for water to fill the icemaker.

Features and Benefits:

• Direct acting armature provides high flow capacity with minimum power requirements
• Encapsulated coil provides high mechanical and dielectric strength, and is moisture resistant
• Unique armature and seat design reduce unwanted particles from entering the armature area
• Armature is designed with clearances which minimize the possibility of jamming due to foreign materials
• Bodies are made of polypro which provides high resistance to corrosion and mineral deposits
• Suitable for applications using water at temperatures up to 160°F (71°C)

Additional Information

Additional Information

Series ApplicationResidential Ice Machine Water Valve S-86

Electrical Rating120V AC, 60 Hz, 35W

Outlet1/4″ quick connect

ReplacesWhirlpool 10219716

Factory Part NumberK-77205

Inlet Size7/16″ 24 UNS

Operating Pressure20 PSI to 120 PSI

Flow Rate140 CC in 7.5 seconds

Terminals1/4″ Male

Body MaterialPolypro
