Description

Description

Product Description

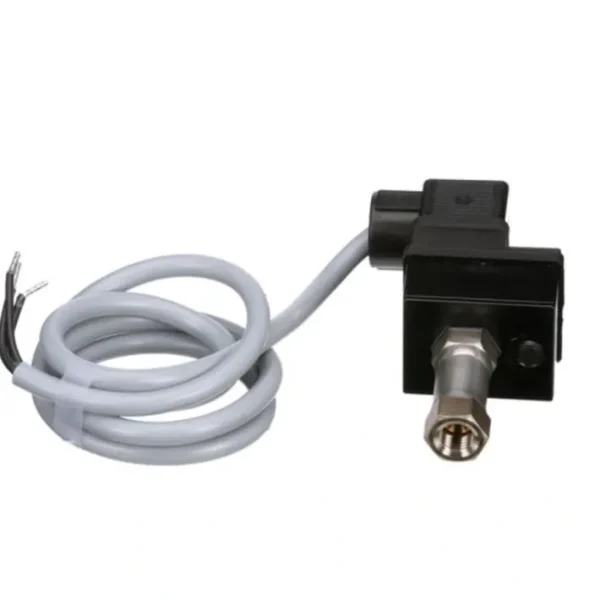

White Rodgers – 097815 The PSC Mini Pressure Control provides the ultimate in reliability and flexibility in a commercial grade mini pressure control. A standard plug connectable design simplifies installation and service. The SPDT switch allows the addition of alarm circuits on high or low pressure applications. Models with high temperature bellows and built-in pressure pulsation snubbers make the PSC ideally suited for compressor head mounting high pressure limit control applications?automatic or manual reset versions are available.

Features:

• Commercial Grade High/Low/Condenser Fan Cycling Pressure Controls for use on Refrigeration/AC Applications
• Mini-Size 277 x 1-1/277 x 2-3/477
• Standard SPDT Switch Action
• Automatic or Manual Reset
• Models available with high temperature bellows and built-in pressure pulsation snubber for direct head mount high pressure sensing/limit applications
• Plug Connectable with hub for 1/277 flexible conduit
• Factory preset to customer desired pressure specifications
• Precise, repeatable settings
• Narrow differential Micro switch available on low pressure models

Additional Information

WeightWeight – Approximately 0.25 lb. depending on configuration

Temperature RangeStorage -30° to +160°F, Operating -20° to +140°F

Mounting OptionsFree Standing Direct Mount

PressureHigh Pressure – Bellows design Maximum media temperature 300°F, Internal Pressure Pulsation Snubber Available For Direct Head Mount

Electrical Ratings2.5 FLA/15 LRA

ConnectorsDIN Plug with 1/2 NPTF Hub for Flex Conduit Connection 36 Cable

CompatibilityHFC, HCFC, CFC

Reset DesignA (Pressure control, Auto)

High Event Range/Contacts (psig)J (7.4 to 90)

High Event Range (psig)7.4 to 90

Differential Range (psid)4 Low/7 High

Setting1.5/6

Maximum Over Pressure360 psig

Electrical Rating Standard SwitchSPDT Switch Standard Switch – High/Low Pressure Load Contact: 6 FLA – 36 LRA – 120/240 Vac Pilot Duty: 240 Va @ 120, 480 Va @ 240 Vac Back Contact 0.5 A 120/240 Vac Pilot Duty

Electrical Rating Micro SwitchMicro Switch – Low Pressure – 2.5 FLA – 15 LRA – 120/240 Vac Pilot Duty: 120 Va @ 120, 240 Va @ 240 Vac – Back Contact 0.5 Amp 120/240 Vac Pilot Duty

Low Pressure – Single Diaphragm Maximum Media Temperature150°F
