Product Description

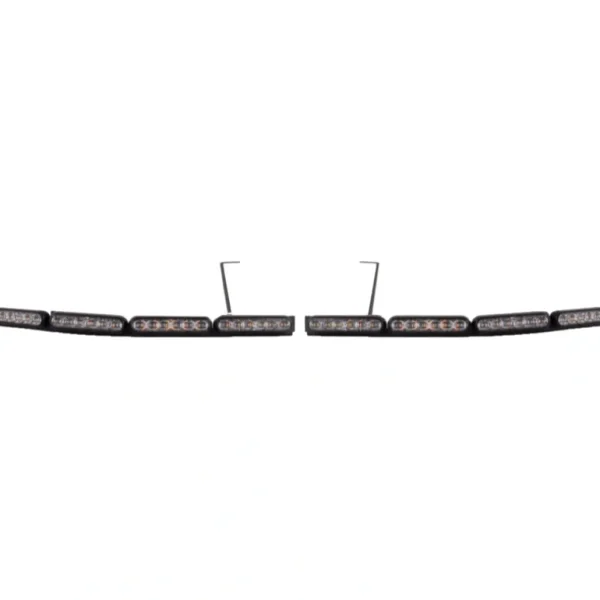

Soundoff Signal EMPAKKT01 Mpower® Arrow Harness Kit, Includes 12″ Breakout Box Harness, (1) Breakout Box, (2) Distribution Harnesses And (1) Power/Control Harness – Could Power Up To 8 Lights (No Mounting Brackets)

Features

• Designed for ease, durability and serious optic performance
• mpower Fascia 4″ lights made with a durable silicone lens
• Reduces install time with 3-wire technology
• Functionality mimics the rear of a lightbar
• Available in single, dual or tricolor
• Non-bracket option available; parts sold separately

Additional Information

CertificationsSAE J595 Class 1 certified, SAE J845 Class 1 certified, CA Title 13, Article 22 compliant

Standby Current 1.0 Amp @ 12.8 VDC, 0.5 Amp @ 25.6 VDC

Flash PatternsOver 140 flash patterns

Input Voltage Range10-30 Vdc

Operating Temperature-40° C to +65° C / -40° F to +149° F

Amperage Draw0.36 Amps @ 12.8 Vdc (Flashing red), 0.62 Amps @ 12.8 Vdc (Peak red), 0.60 Amps @ 12.8 Vdc (Flashing amb, blue, green, white), 0.90 Amps @ 12.8 Vdc (Peak amb, blue, green, white)

LED Color Options CountSingle color – 6 8 LEDs, dual color – 12 LEDs, tricolor – 18 LEDs

Watts4.6 watts (red), 7.7 watts (amber, blue, green, white)

LED Color OptionsAmber, blue, green, red, white

Electrical ProtectionReverse polarity and load dump protected

Arrow Patterns11 arrow patterns

Dimensions (1 piece, 6 mod including brackets)12.5” L x 1.5” D x 1.25” H

Dimensions (1 piece, 8 mod including brackets)17.5” L x 1.5” D x 1.25” H

MaterialGalvannealed steel brackets, silicone LED modules
