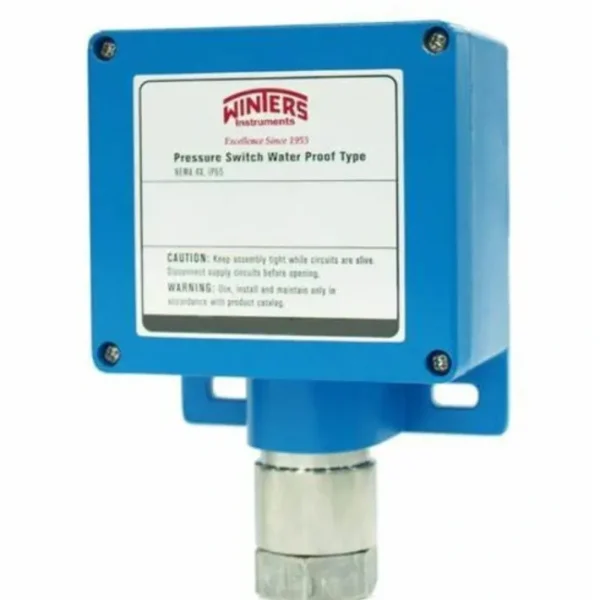

Winters Instruments – 4WPS020F2F201

Features

• General Purpose, watertight pressure switch
• Low pressure to 100 psi
• High current ratings for 1 x SPDT or 2 x SPDT switches
• Fixed or adjustable deadband options
• Die cast aluminum construction with welded seal
• 1% accuracy • NEMA 4, 4X IP66 rated
• RU recognized (switch only), file no E12252
• CRN registration pending
• 5 year warranty

Applications

Suitable for pump and compressor monitoring, HVAC systems and general industrial applications.

Additional Information

HousingHeavy-duty die-cast aluminum, blue colour

Accuracy+/- 1% of the adjustable set-point range

Pressure ConnectionFemale 1/4” or 1/2” NPT, BSP and M20xP1.5

Electrical ConnectionFemale 1/2” or 3/4” NPT, M20xP1.5

Wetted Parts316 Stainless Steel welded

Set Point AdjustmentField selectable

DeadbandFixed or Adjustable, see Order Codes

Contact RatingFixed Deadband:15A @ 125/250VAC, 0.4A @ 125VDC, 3A @ 30VDC Gold contact microswitch, 1A @ 125/250VAC, Adjustable Deadband:20A @ 125/250/480VAC, 5A @ 125VDC

No. of Contacts1 x SPDT or 2 x SPDT (only 1 x SPDT available for Adjustable Deadband range)

Ambient/Process Temperature-30 to 205 deg C (-22 to 400 deg F)

Enclosure RatingNEMA 4 4X, IP66, Protection against liquid and solid ingress, suitable for indoor or outdoor use and resistant to corrosion

ApprovalsRU recognized, fi le no E12252 (switch only), CRN registration pending

Weight3.35 lbs (1.52 kg)
